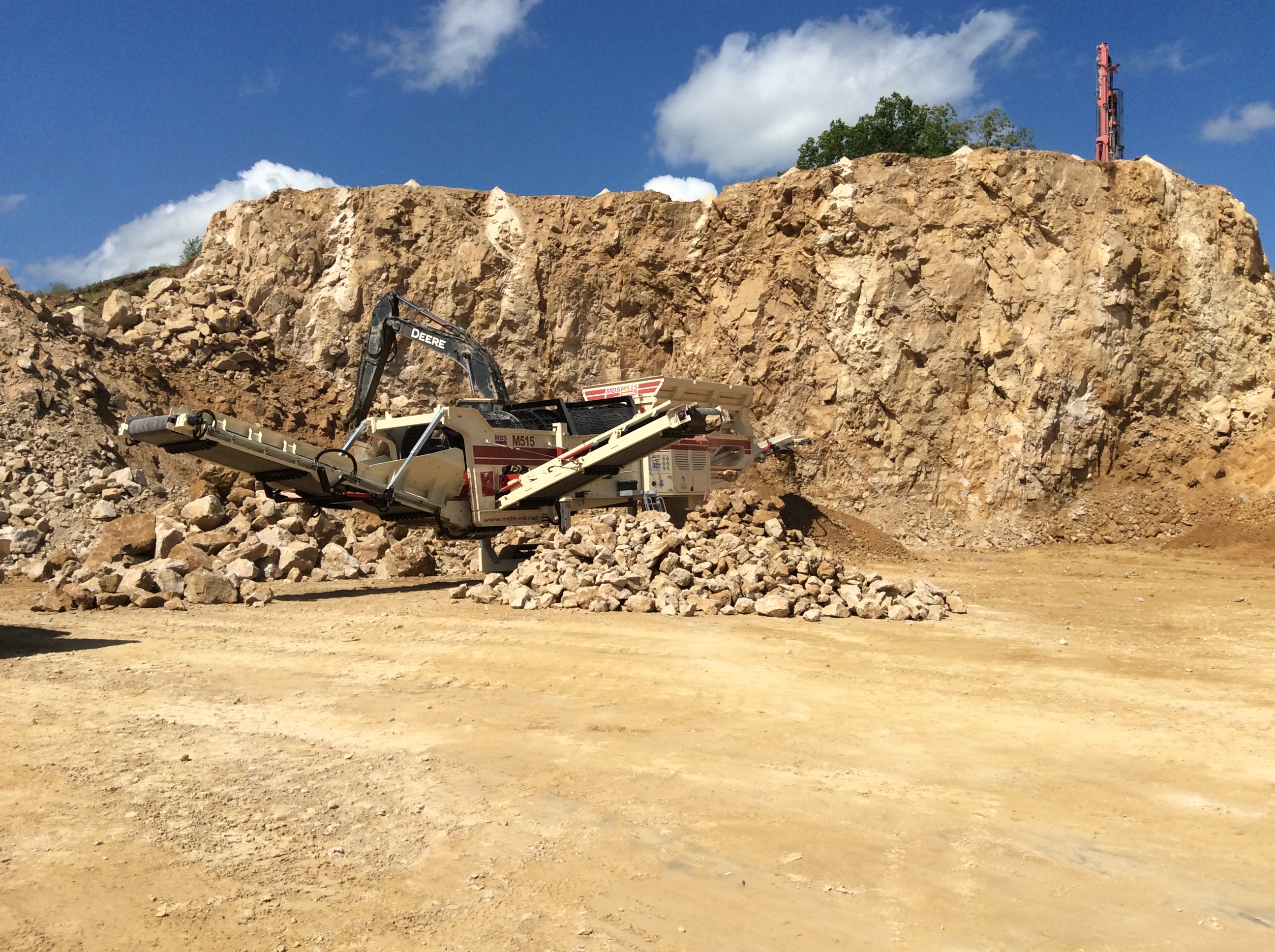

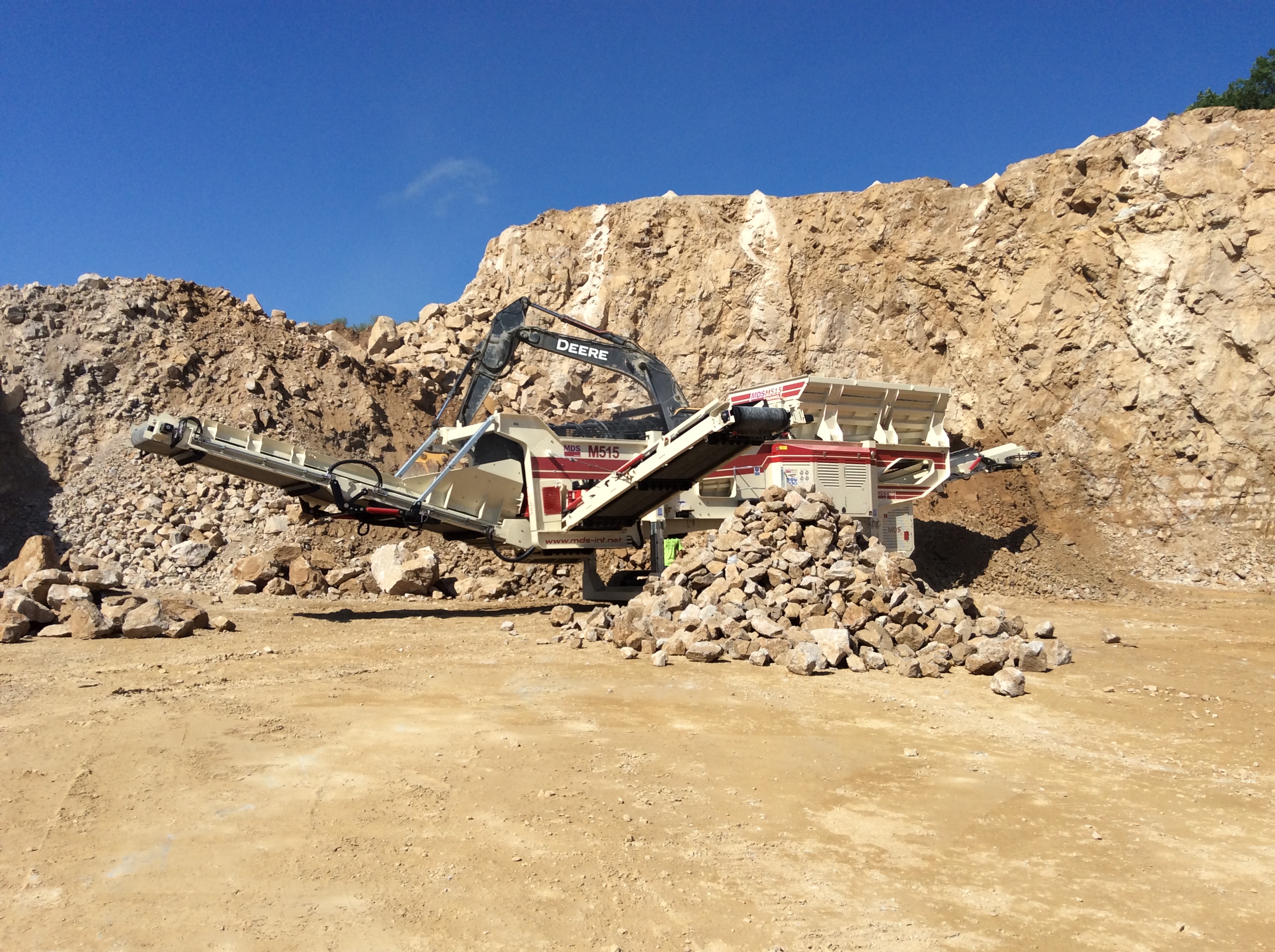

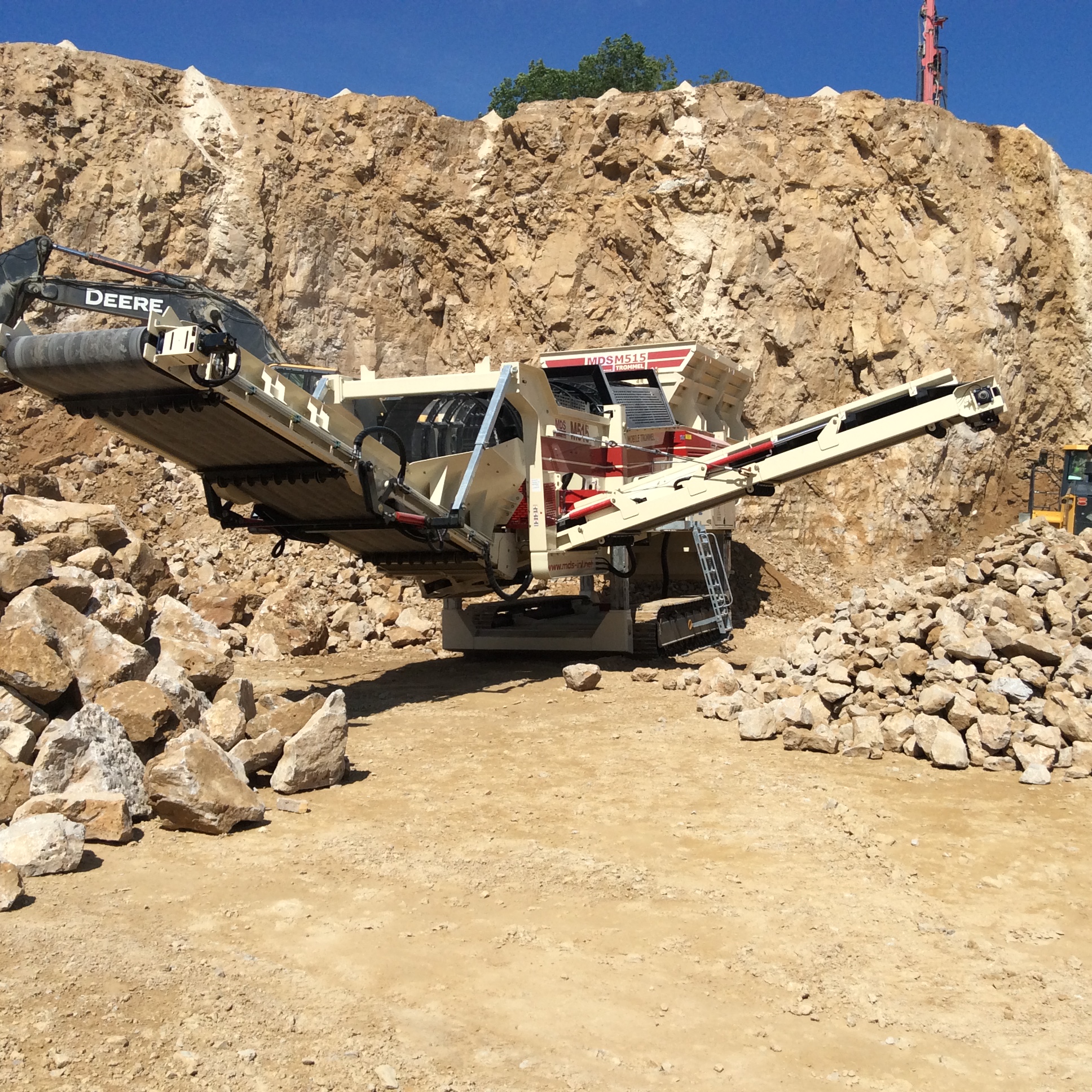

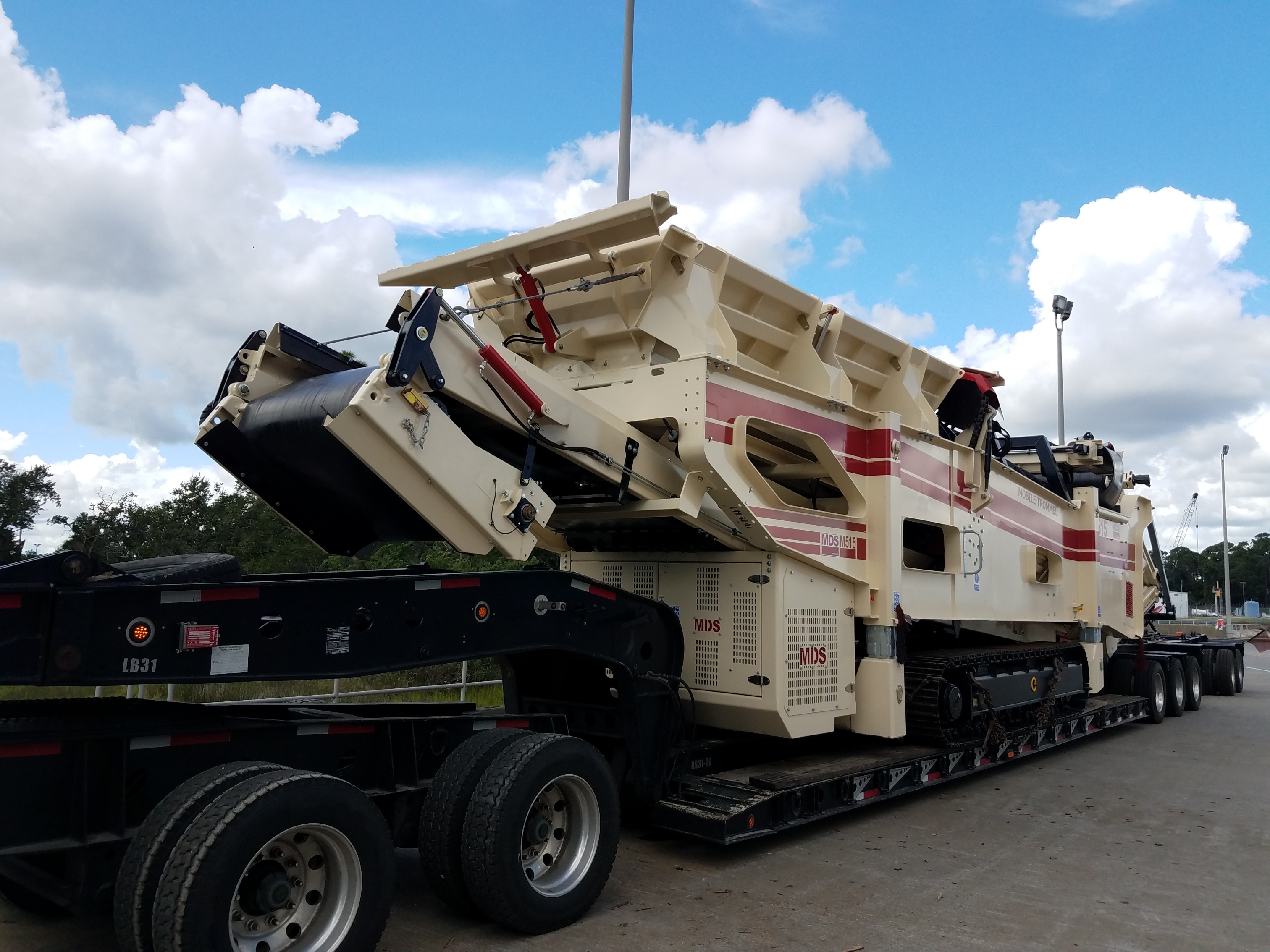

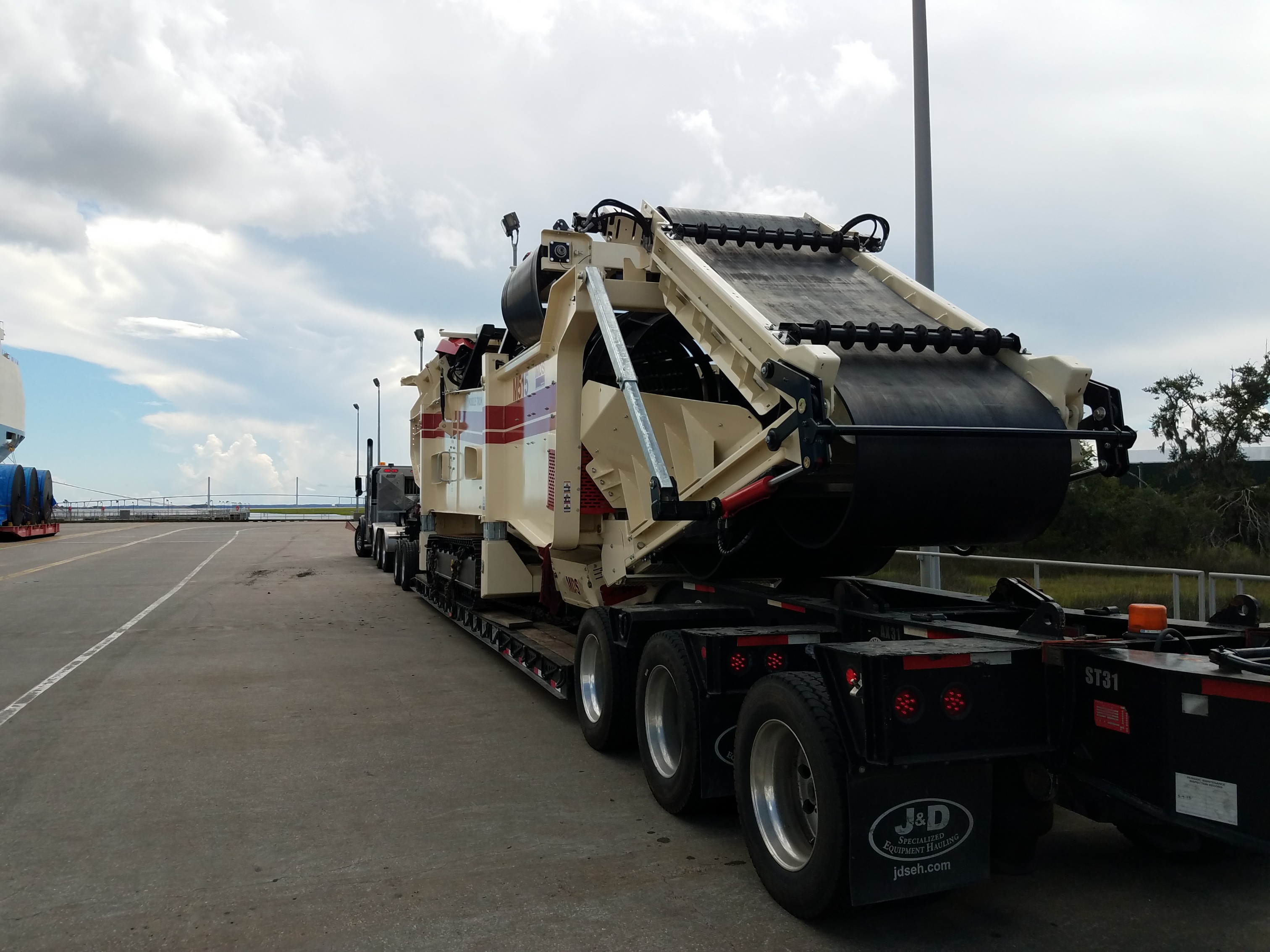

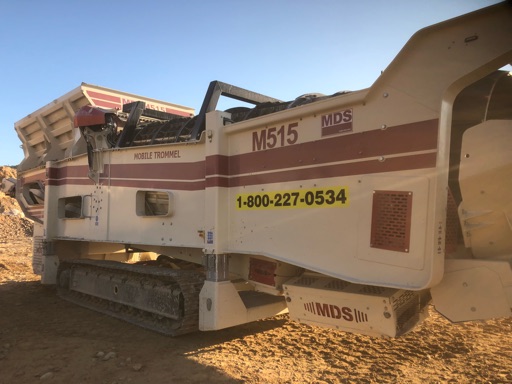

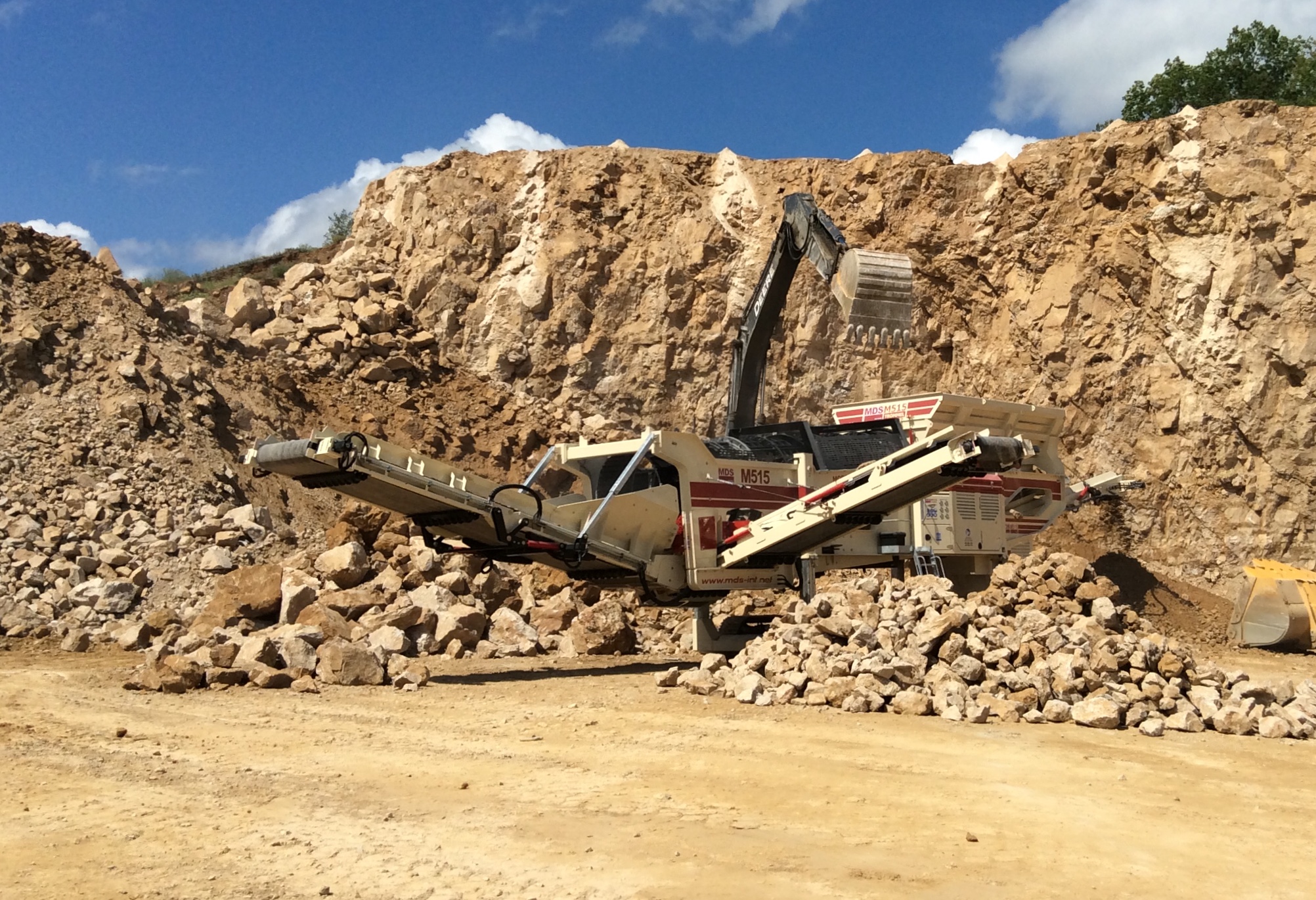

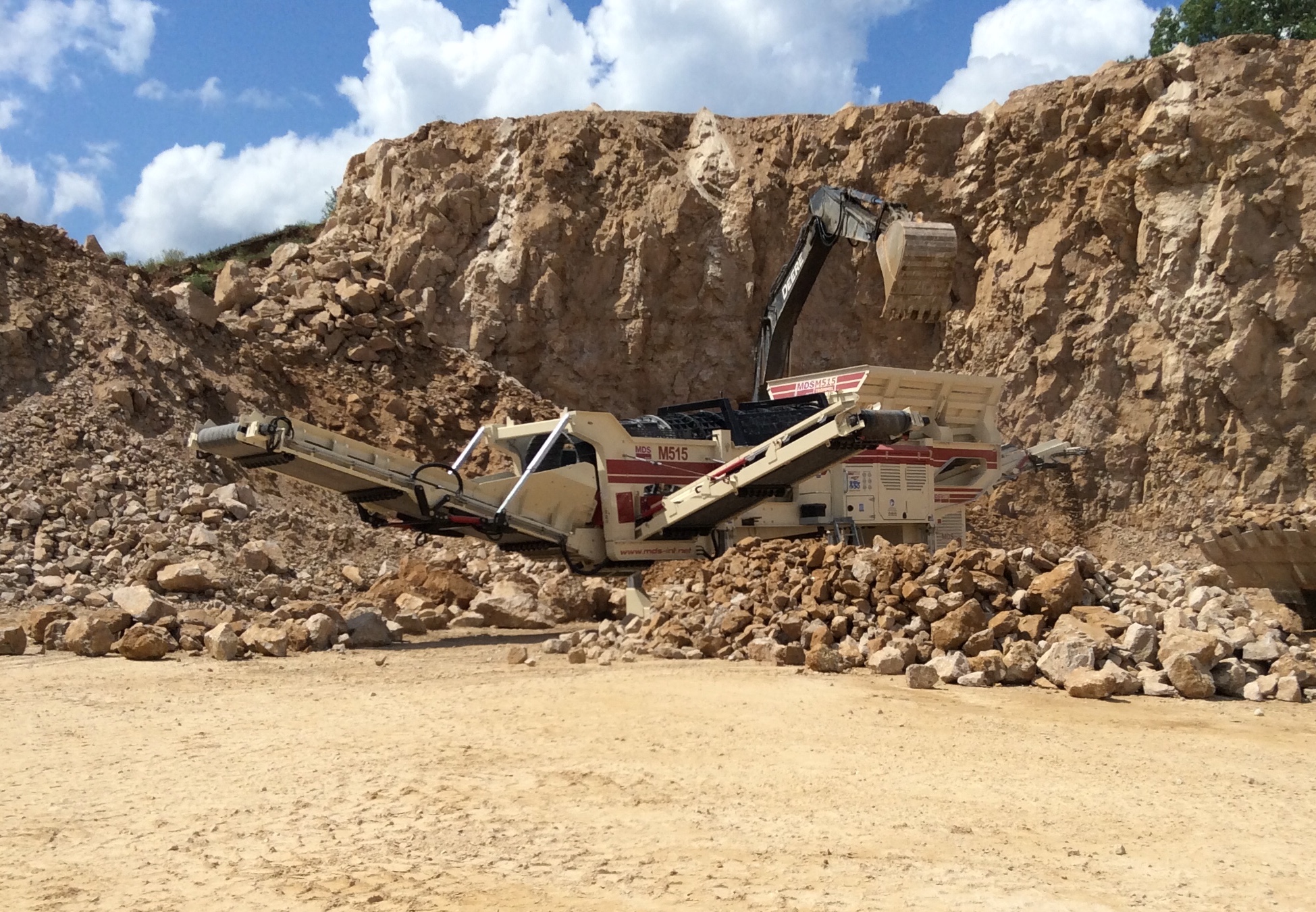

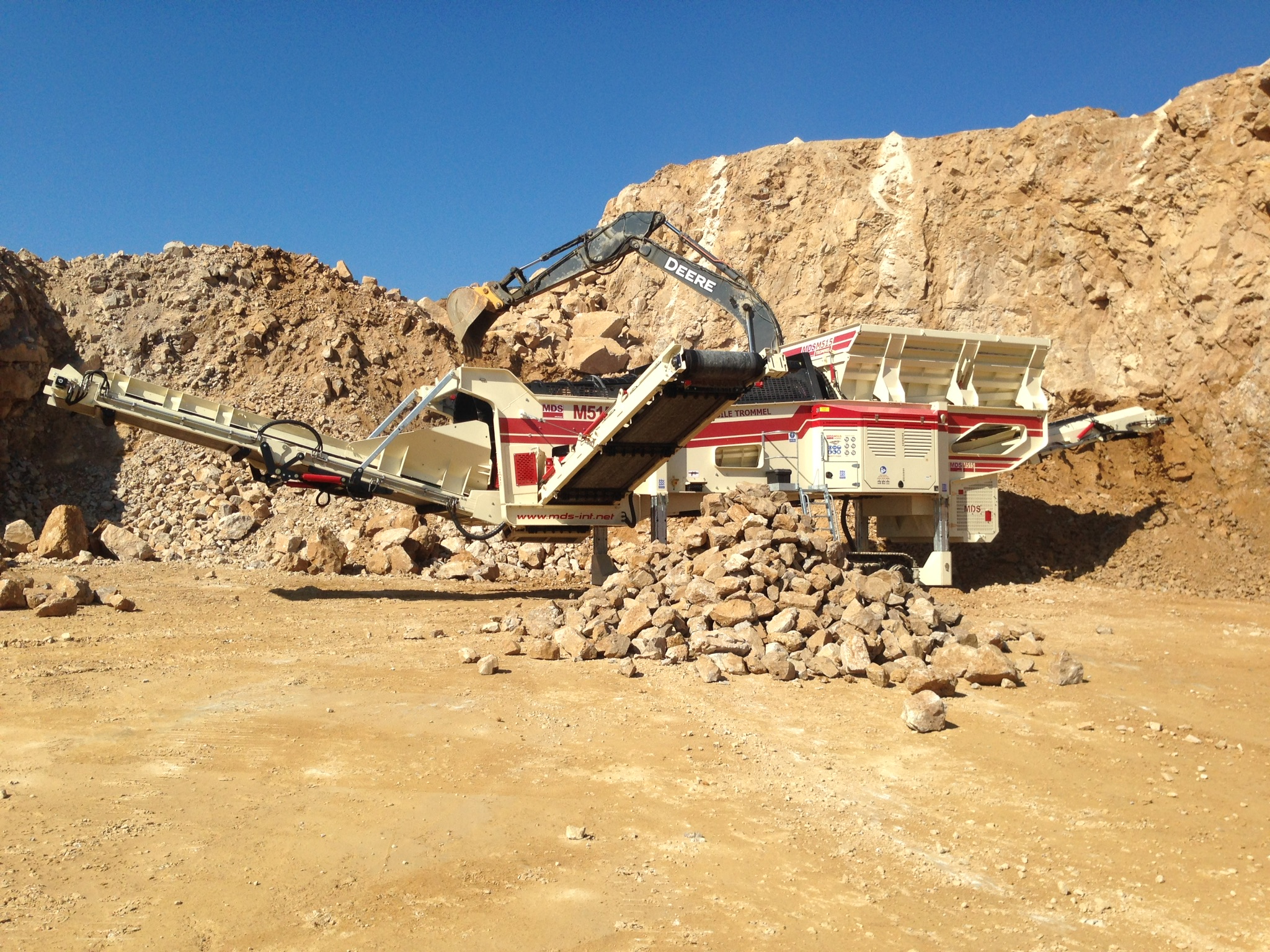

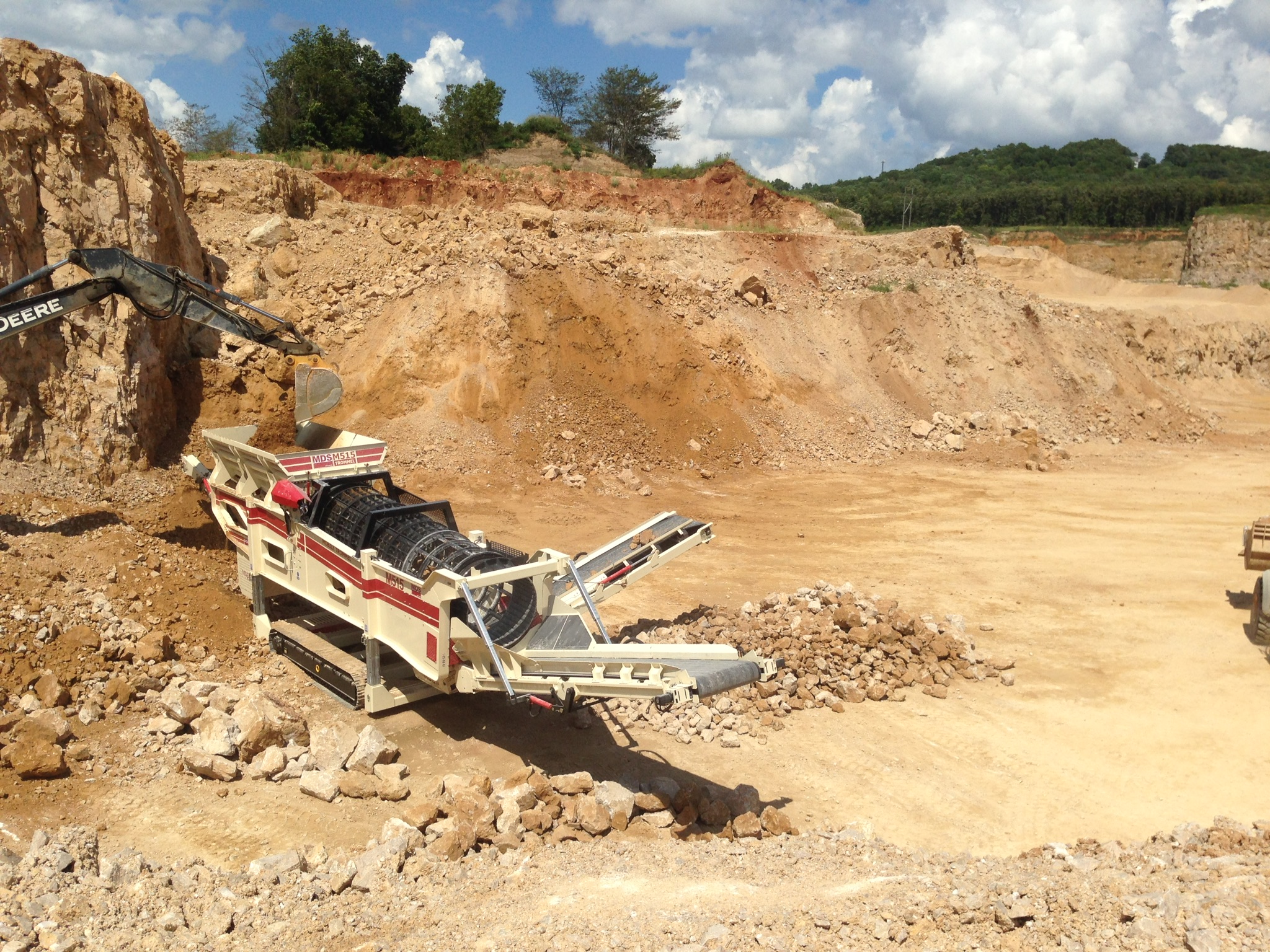

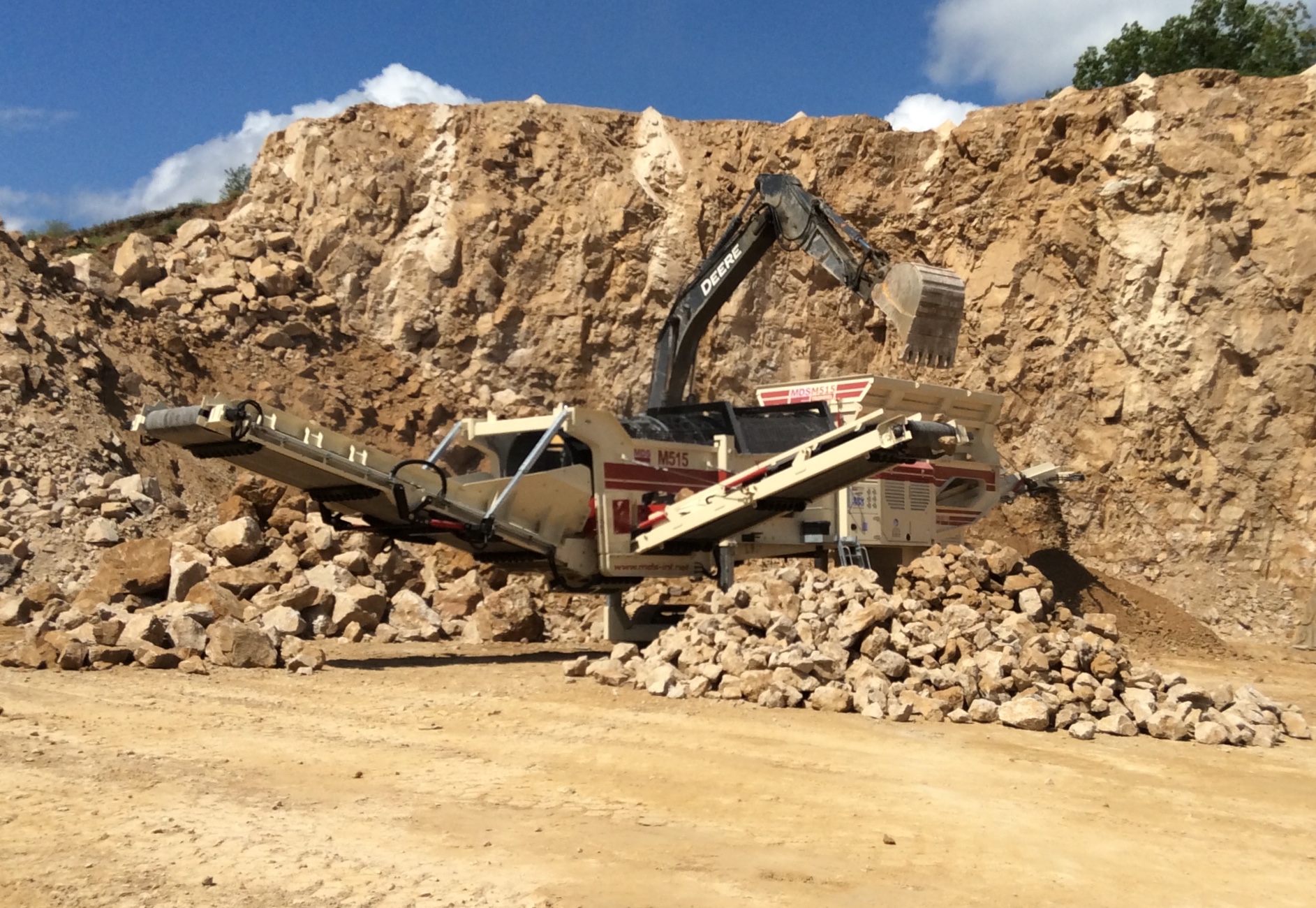

2018 MDS M515 Track Trommel

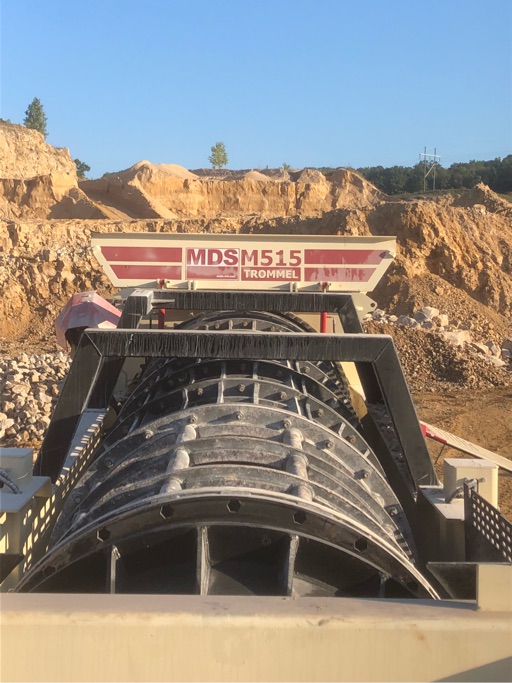

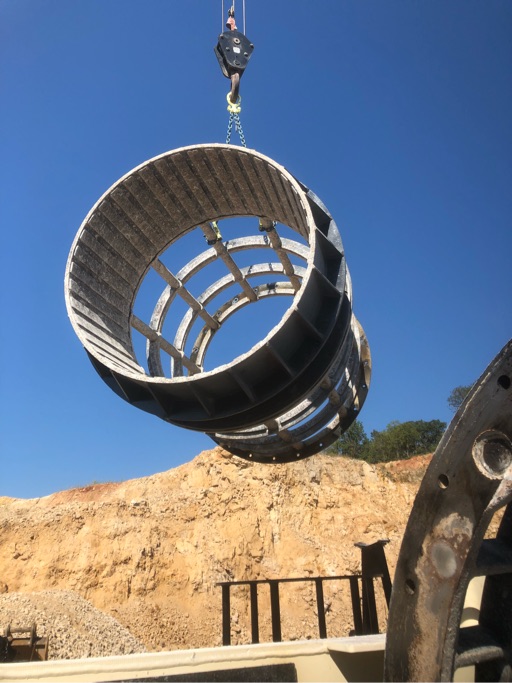

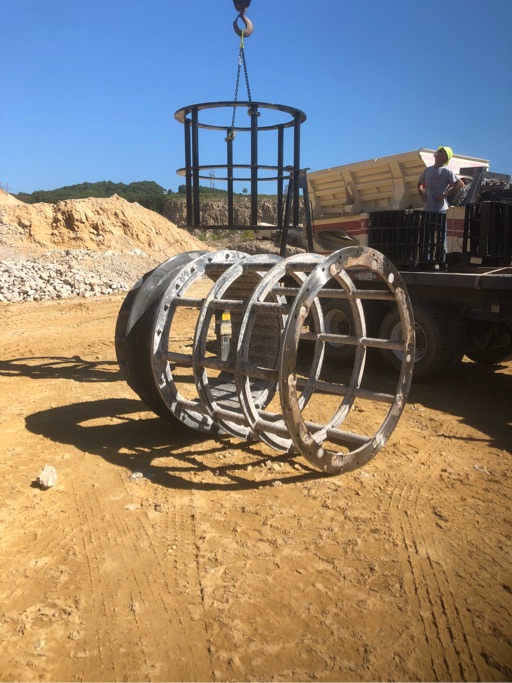

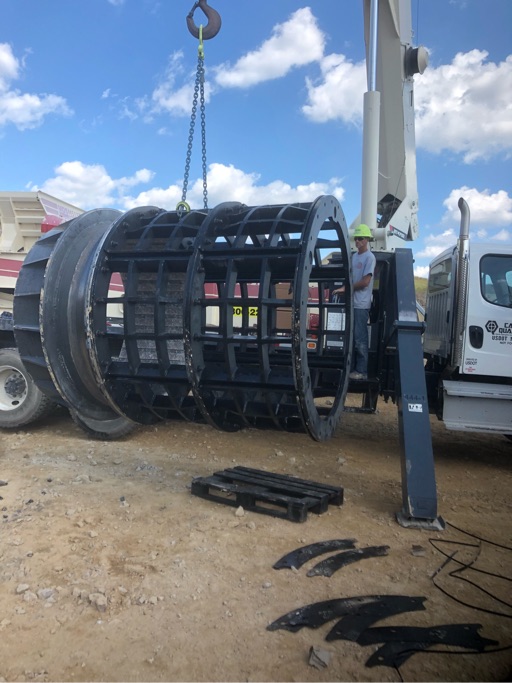

Diameter:Internal 1.5m (5ft)Length:5.5m (18ft)Incline angle:5 DegreesAperture spacing:4m long can be 50mm(2”)to 200mm(8”)(1stFraction) 1.5m long can be 50mm(2”)to 450mm(18”) openings (2ndFraction)Oversize up to 800mm (32”)Screen segments:Manufactured from steel bar and bolted sections.Changeable Drum:With removable screen sections. This allows the customer to change sizes, as well as repair/replace individual sectionsWelded Drum:Fully welded drum sections for a more robust screening and higher outputSupport rollers:4 support rollers constructed out of steel, mounted in cradle through spindle.Support roller paths:Manufactured from high quality steel,welded to the barrel to give uniform solid support. Machined face for smooth rolling motionScreen Drive:Hydraulic motor with toothed sprocket and chain drive.Drive base:Fabricated base, mounted into the underframeDiameter:Internal 1.5m (5ft)Length:5.5m (18ft)Incline angle:5 DegreesAperture spacing:4m long can be 50mm(2”)to 200mm(8”)(1stFraction) 1.5m long can be 50mm(2”)to 450mm(18”) openings (2ndFraction)Oversize up to 800mm (32”)Screen segments:Manufactured from steel bar and bolted sections.Changeable Drum:With removable screen sections. This allows the customer to change sizes, as well as repair/replace individual sectionsWelded Drum:Fully welded drum sections for a more robust screening and higher outputSupport rollers:4 support rollers constructed out of steel, mounted in cradle through spindle.Support roller paths:Manufactured from high quality steel,welded to the barrel to give uniform solid support. Machined face for smooth rolling motionScreen Drive:Hydraulic motor with toothed sprocket and chain drive.Drive base:Fabricated base, mounted into the underframe
