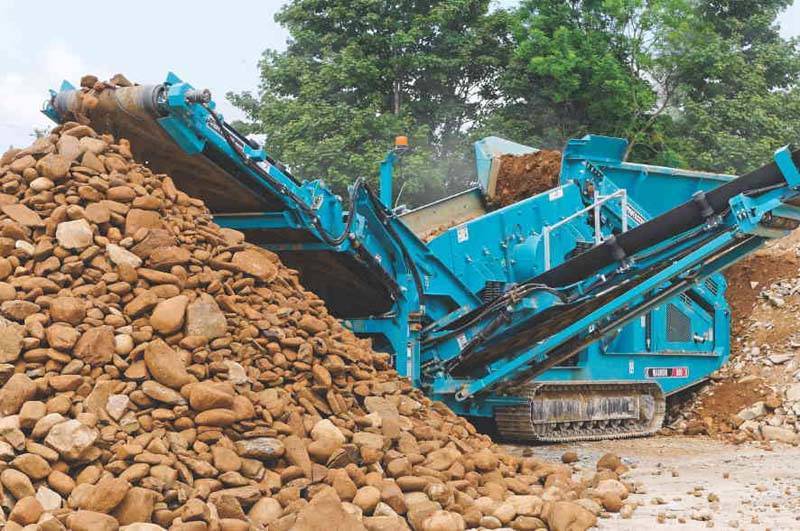

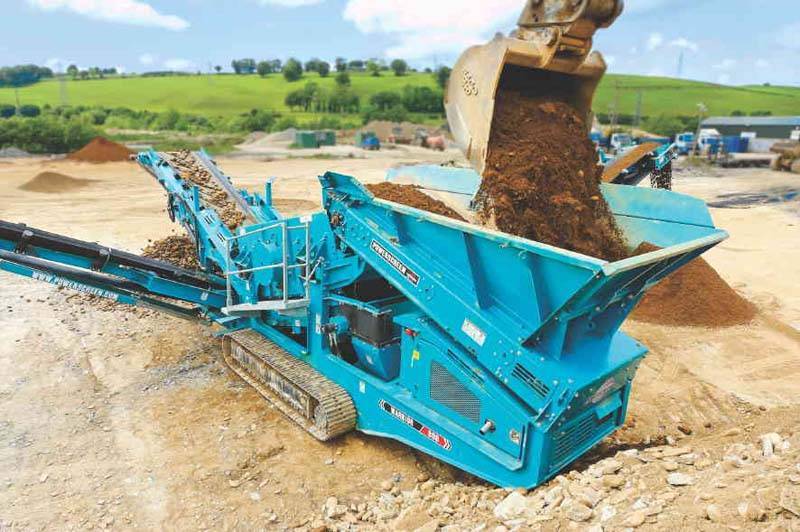

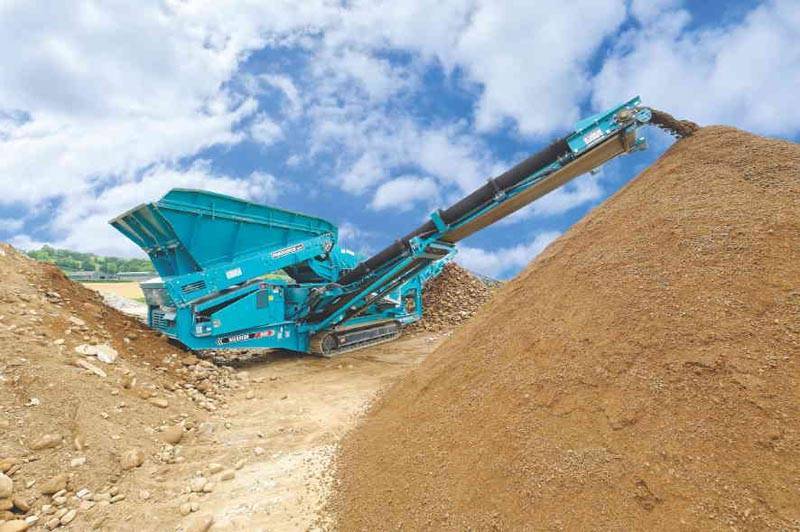

Powerscreen Warrior 800
The Powerscreen® Warrior 800 has been specifically designed for the small end user for whom versatility and transportability are of key importance. The machine is a multi-purpose heavy duty incline 2 deck screen, capable of stockpiling, 3 way splitting or scalping before and after crushing units. Its highly aggressive screen can accept bofor bars, finger screens, woven mesh, and punch plates.
User benefits include a rapid set-up time and ease of operation aided by the hydraulic folding tail and side conveyors, rigid feed hopper sides and two-speed tracks. Simplified slide out tail conveyor facilities aid media access and screen media changes.
| Track | Wheeled | |
|---|---|---|
| Weight (Est) | 16,700kgs (36,817lbs) | 16,500kgs (36,375lbs) |
| Transport Width | 2.5m (8'2") | 2.5m (8'2") |
| Transport Length | 9.22m (30'3") | 10.64m (34'11") |
| Transport Height | 3.09m (10'1") | 3.51 (11'6") |
| Working Width | 14.09m (46'3") | 14.09m (46'3") |
| Working Length | 11.11m (36'5") | 12.5m (41') |
| Working Height | 3.92m (12'10") | 4.33m (14'3) |
| Screenunit | 2.77m x 1.22m (9'x4') | 2.77m x 1.22m (9'x4') |
* All information subject to machine configurations & specifications ordered. ** Powerscreen reserves the right to change specifications without prior notice.
- Output potential up to 280 tph (308 US tph)
- Variable speed hopper featuring impact bars, rigid hopper and rollers
- Meets European transport width regulation
- Collapsable rear hopper wall for direct feeding
- Robust, heavy duty, fixed angle 2 bearing, 2 deck screen
- Hydraulic “slide out facility” on tail conveyor, maximum bottom deck access
