Powerscreen XA400S / XR400S
The Powerscreen® X400S range of high-performance primary jaw crushing plants are designed for medium scale operators in quarrying, demolition, recycling and mining applications.
The range includes the XA400S with hydraulic adjust and the XR400S with a hydraulic release. User benefits include track mobility for a quick set-up time (typically under 30 minutes), hydraulic crusher setting adjustment for total control of product size and crusher overload protection to prevent damage by uncrushable objects.

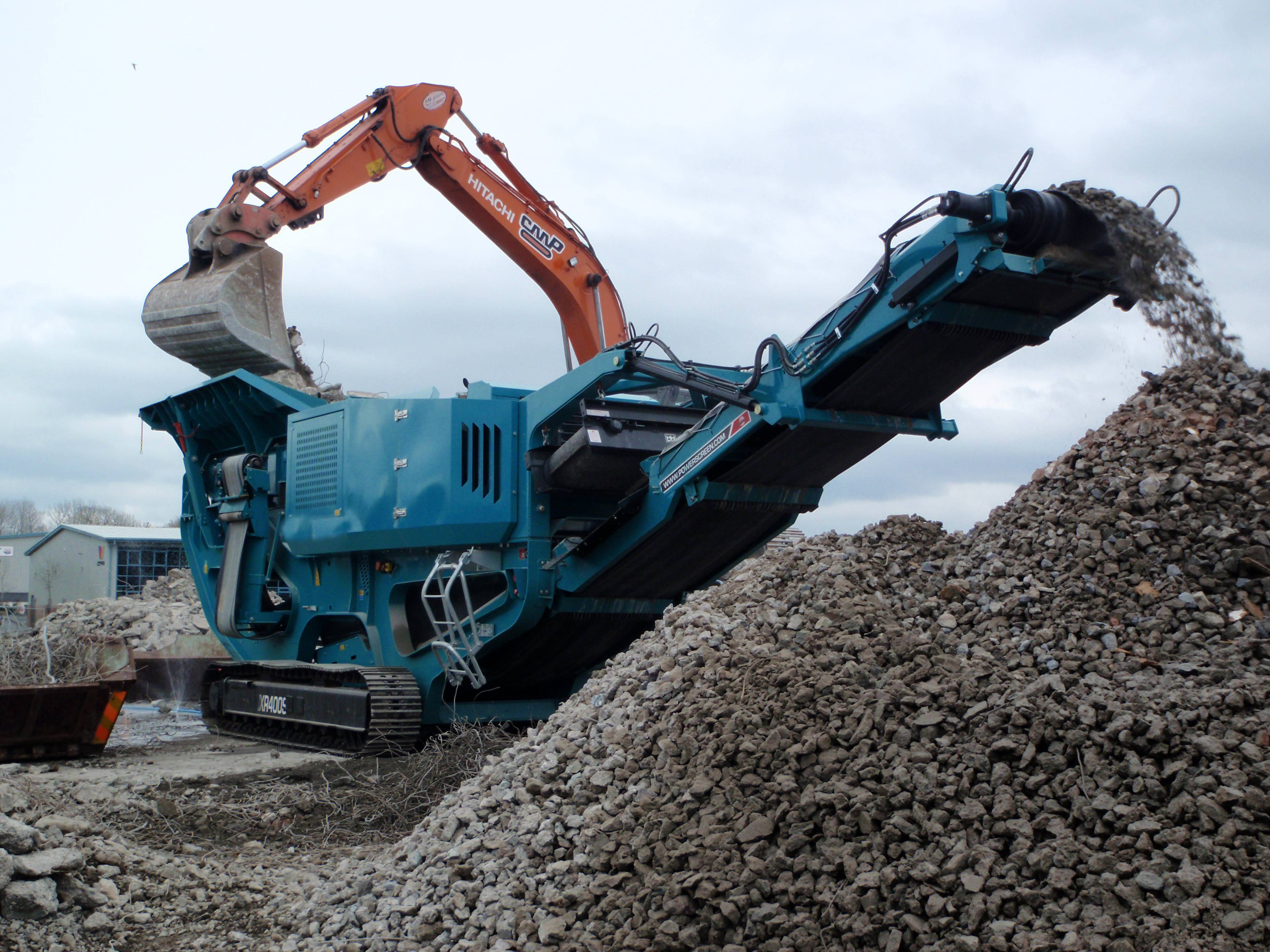

Powerscreen XA400S/ XR400S
Check out the Powerscreen XA400S/ XR400S
specifications and features.
| Premiertrak XA400S | Premiertrak XR400S | |
|---|---|---|
| Weight (Est) | 44,750kgs (98,656lbs) | 44,750kgs (98,656lbs) |
| Transport Width | 2.8m (9'2") | 2.8m (9'2") |
| Transport Length | 15.2m (49'10") | 15.2m (49'10") |
| Transport Height | 3.4m (11'2") | 3.4m (11'2") |
| Working Width | 4.3m (14'1") | 4.3m (14'1") |
| Working Length | 15m (49'3") | 15m (49'3") |
| Working Height | 4.1m (13'5") | 4.1m (13'5") |
* All information subject to machine configurations & specifications ordered. ** Powerscreen reserves the right to change specifications without prior notice.
- Output Potential: up to 400tph (441 US tph)
- Excellent reduction capability
- Hydraulic folding feed hopper with boltless fixing system
- Excellent under crusher access with a hydraulic tilting conveyor system
- Economical to operate with a highly efficient direct drive system
- Forceful crushing action with high swing jaw
- Height adjustable product conveyor
- Extended hopper – hydraulically folding
Image Gallery
