Powerscreen 1000 Maxtrak – 1000SR

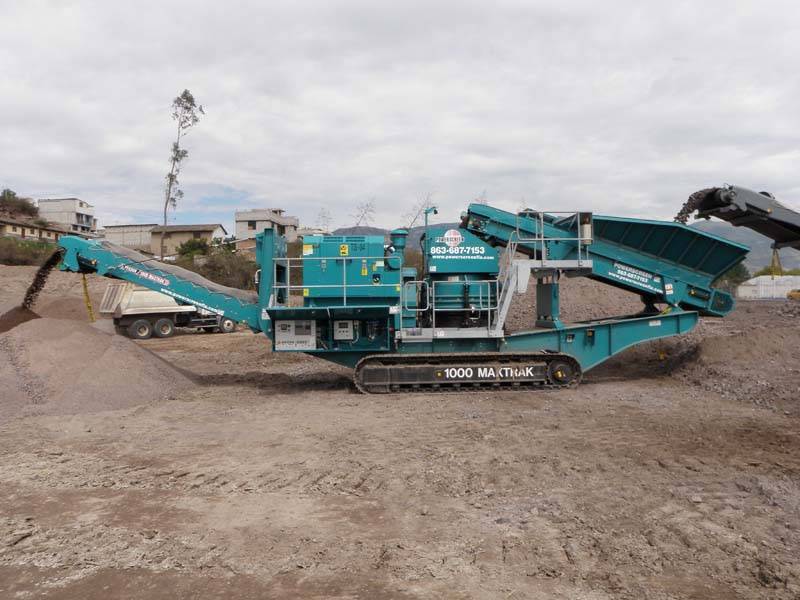

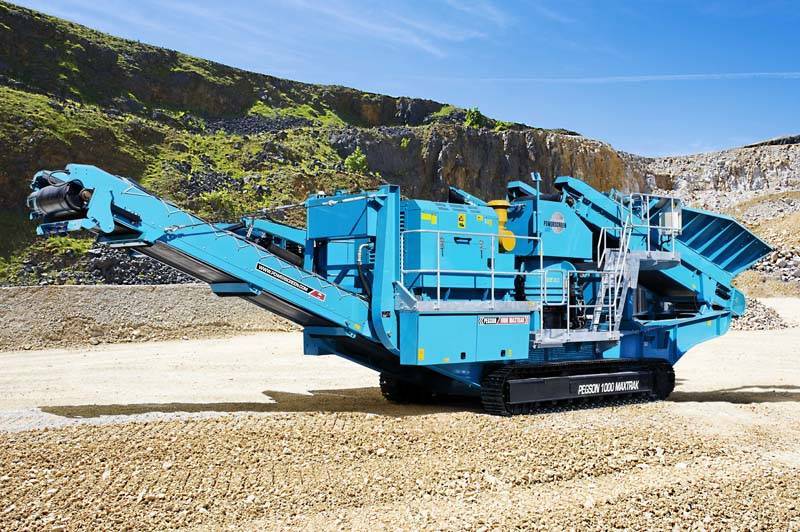

The high-performance Powerscreen® 1000 Maxtrak cone crusher has been designed for direct feed applications without pre-screening on clean rock. At its heart is the Automax® cone crusher which provides an excellent reduction and product cubicity for the production of high-quality aggregate and sub-base material. Hydraulic release capabilities ensure that any un-crushable material entering the chamber is safely discharged.
The Powerscreen® 1000SR features a re-circulating conveyor and a double deck screen to provide the complete crushing and screening process on a single chassis. Suitable for secondary and tertiary applications, the 1000SR can produce up to three end products when the oversized material doesn’t require re-circulation to the crusher.
| Powerscreen 1000 Maxtrak | Powerscreen 1000SR | |
|---|---|---|
| Weight (Est) | 31,800kgs (70,100lbs) | 38,500kgs (84,900lbs) |
| Transport Width | 2.8m (9'2") | 3.1m (10'2")/td> |
| Transport Length | 14.5m (47'7") | 16.9m (55’ 5”) |
| Transport Height | 3.45m (11'4") | 3.45m (11'4") |
| Working Width | 2.8m (9'2") | 3.1m (10'2") |
| Working Length | 14.5m (47'7") | 16.9m (55’ 5”) |
| Working Height | 4.1m (13'5") | 4.85m (15’ 11”) |
- Output Potential: up to 230 tph (253 US tph)
- Renowned Automax® crusher technology
- Accepts clean all in feed
- Excellent product shape
- High reduction ratio
- Cone feed box level control to maintain choke feeding
- Hydraulic crusher setting
- Cone overload protection
- Heavy duty chassis and track frame
- Metal detector
- Dust suppression system
- Economical to operate with a highly fuel efficient direct drive system
- Combines crushing and screening capabilities on a single plant (1000SR)
- Suitable for re-circulating oversized material (1000SR)
