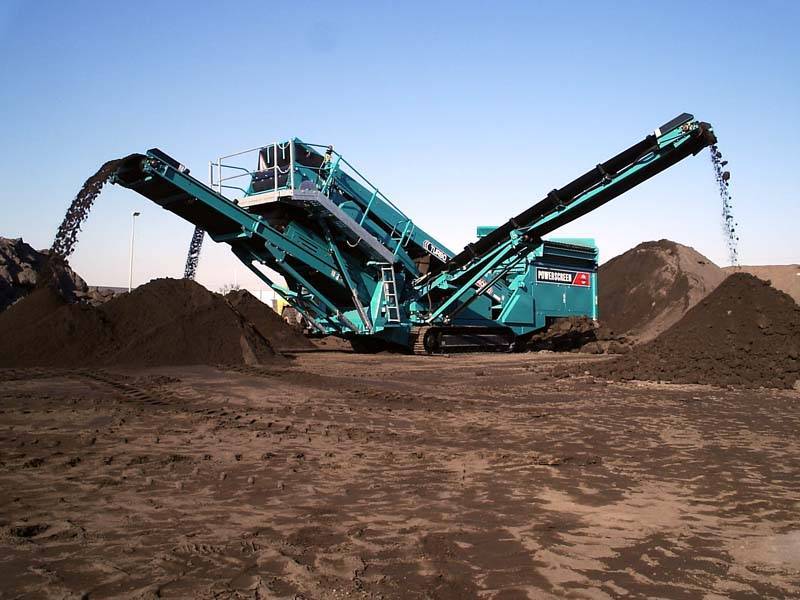

Powerscreen Chieftain 1400
The Powerscreen® Chieftain 1400 is one of Powerscreen’s most popular screening products and is ideally suited for small to medium sized operators and contractors who require a versatile product capable of operating in a number of applications such as sand and gravel, aggregates and recycling. User benefits include hydraulic folding conveyors for a quick set-up time, screen walkways and access ladders for ease of maintenance, and a drop down tail conveyor to aid screen media changes.
Powerscreen Chieftain 1400
Check out the Powerscreen Chieftain 1400
specifications and features.
| Track | Wheel | |
|---|---|---|
| Weight (Est) | 27,600kgs (60,840lbs) | 24,170kgs (52,280lbs) |
| Transport Width | 2.75m (9') | 2.75m (9') |
| Transport Length | 14.45m (47'5") | 16.2m (53'2") |
| Transport Height | 3.2m (10'6") | 3.9m (12'8") |
| Working Width | 16.21m (53'2") | 16.21m (53'2") |
| Working Length | 16.4m (53'8") | 17.33m (56'10") |
| Working Height | 5.07m (16'6") | 5.3m (17'5") |
| Screenunit | 3.3m x 1.5m (11'x5') | 3.3m x 1.5m (11'x5') |
* All information subject to machine configurations & specifications ordered.
** Powerscreen reserves the right to change specifications without prior notice.
- Output potential up to 400 tph (441 US tph)
- Radio controlled tipping grid
- Integrated high capacity variable speed belt feeder
- Grease filled patented 4 bearing, 2 deck screenbox
- Hydraulic screen angle adjustment
- Hydraulic screen tensioning
- Screen walkway and access ladder
- Hydraulic folding conveyors
- Engine protection shutdown system

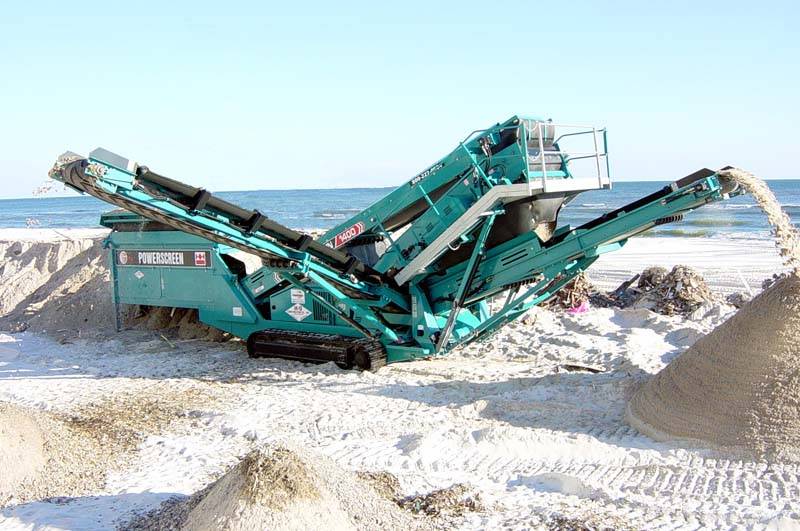

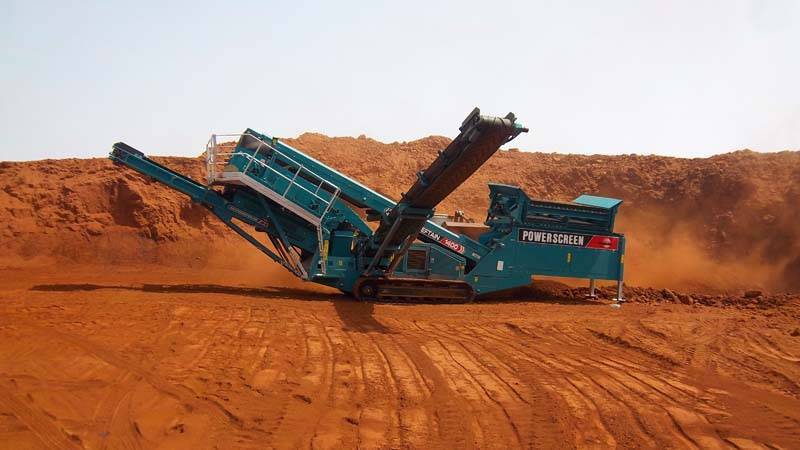

Image Gallery
