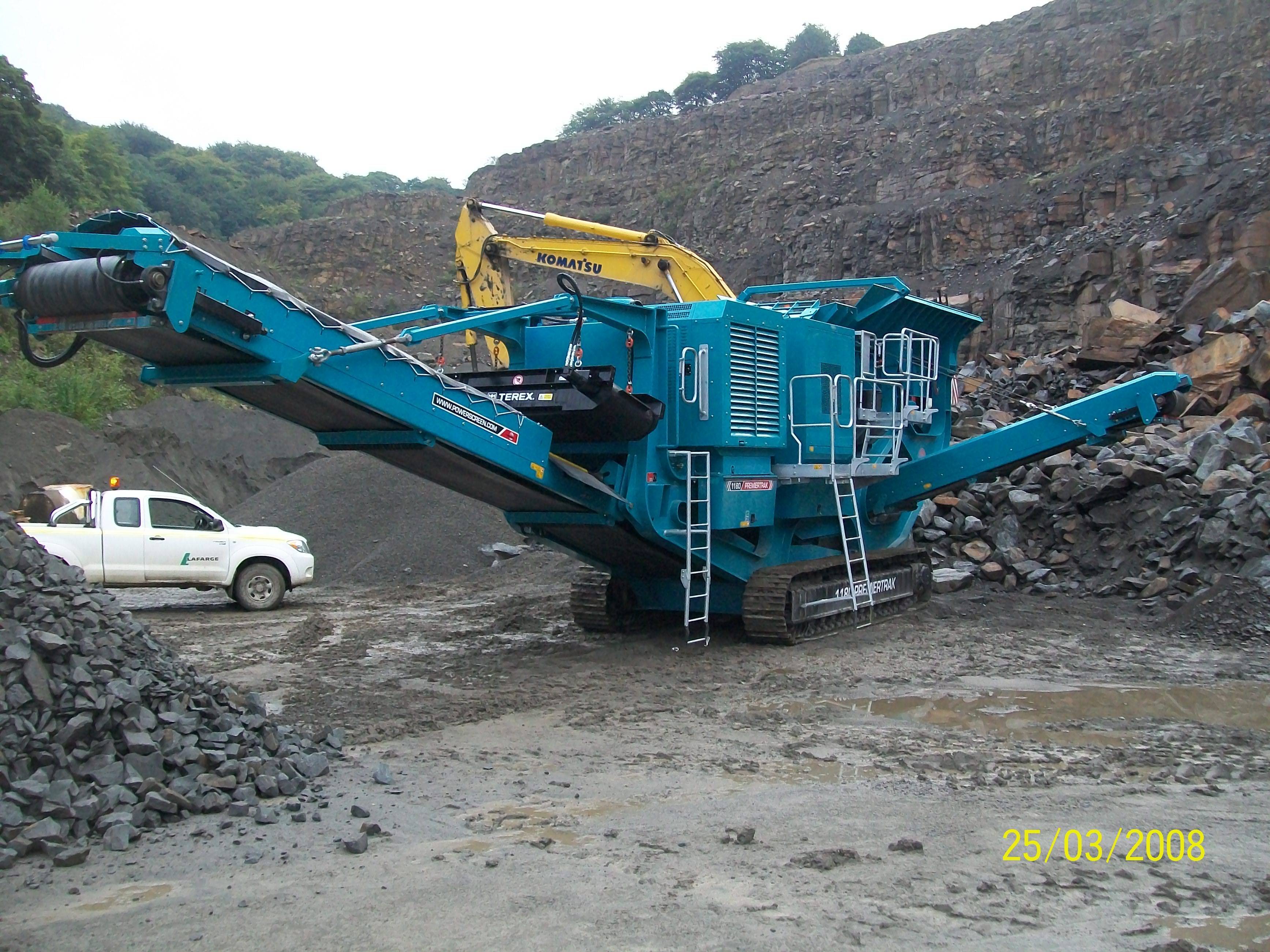

Powerscreen 1180 Premiertrak
The Powerscreen® 1180 Premiertrak is a medium to large scale mobile primary jaw crusher plant that acheives high outputs in a variety of quarrying, recycling and contract crushing applications. The crusher features a high swing jaw with a forceful motion that improves feed entry into the crushing chamber to maximise throughput and allow for excellent reduction. User benefits include a low fuel consumption, track mobility and simplified set-up, operation and maintenance.
Powerscreen 1180 Premiertrak
Check out the Powerscreen 1180 Premiertrak
specifications and features.
| Powerscreen 1180 Premiertrak | |
|---|---|
| Weight (Est) | 56,650kgs (124,892lbs) |
| Transport Width | 2.97m (9'9") |
| Transport Length | 16.6m (54'6") |
| Transport Height | 3.8m (12'6") |
| Working Width | 2.97m (9'9") / 4.2m (13'8) w/600mm (24") dirt conveyor |
| Working Length | 16.6m (54'6") |
| Working Height | 4.45m (14'7) |
- Output Potential: up to 450 tph (496 US tph)
- High output and excellent reduction capacity
- Hydraulically folding wear resistant hopper
- 2 Way dirt chute
- Heavy duty fabricated chassis and track frame
- Aggressive stroke with high swing jaw
- Fully skirted product conveyor with hydraulic tail lift
- Economical to operate and low fuel consumption due to highly fuel efficient direct drive system
- Oversize cartridge encased mainframe bearings
- Dust suppression system
- Rugged vibrating grizzly feeder
- Manual crusher setting adjustment
- Easy access powerunit canopy
- PLC control system with auto start facility
- Remote control via umbilical
