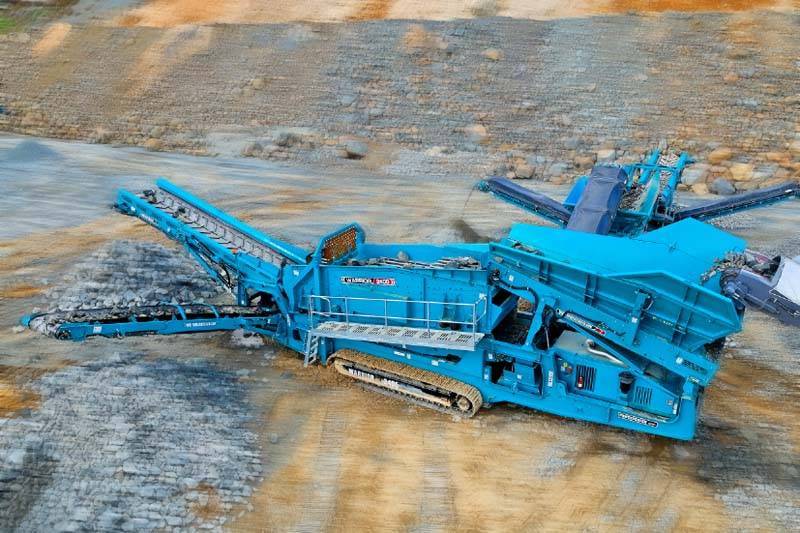

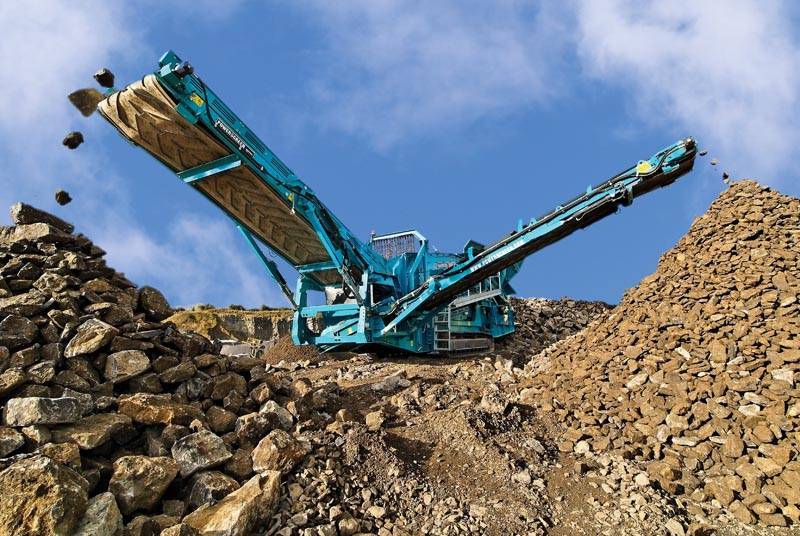

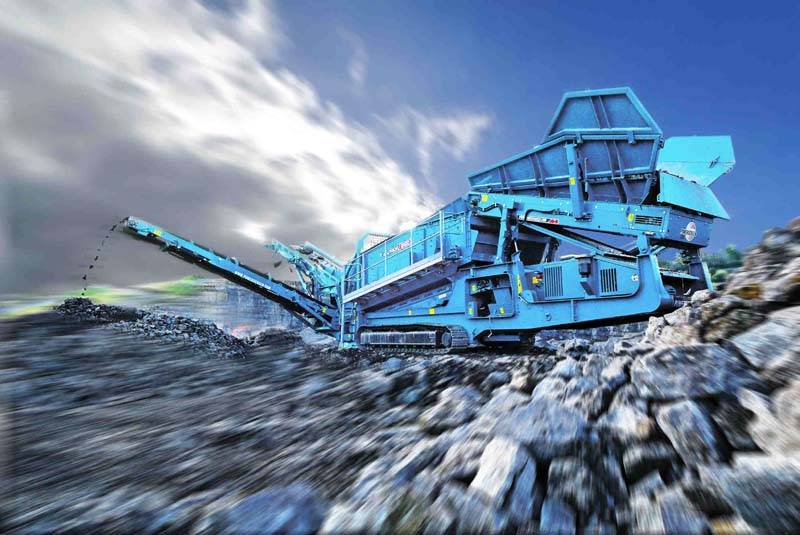

Powerscreen Warrior 2400
Specially designed for large-scale operators in the quarrying and mining sectors, the Powerscreen® Warrior 2400 is capable of handling larger feed sizes and throughputs. It features a heavy duty incline screen with a high amplitude triple shaft drive mechanism, lending it to screening, scalping, 2 or 3 way splitting and stockpiling materials like aggregates, topsoil, coal, construction, demolition waste, and iron ore.
User benefits include a slide out tail conveyor facility to aid media access and a load sensing collection conveyor circuit to avoid blockages.
Powerscreen Warrior 2400
Check out the Powerscreen Warrior 2400
specifications and features.
| 2 Way Split | 3 Way Split | |
|---|---|---|
| Weight (Est) | 43,000kgs (94,600lbs) | 45,000kg (99,000lbs) |
| Transport Width | 3m (9'10") | 3m (9'10") |
| Transport Length | 17.19m (56'5") | 17.33m (56'10") |
| Transport Height | 3.6m (11'10") | 3.6m (11'10") |
| Working Width | 9.58m (31'5") | 15.33m (50'4") |
| Working Length | 18.34m (60'2") | 18.49m (60'8") |
| Working Height | 4.88m (16') | 5.2m (17'1") |
| Screenunit | 6.1m x 1.8m (20'x6') | 6.1m x 1.8m (20'x6') |
* All information subject to machine configurations & specifications ordered. ** Powerscreen reserves the right to change specifications without prior notice.
- Output potential up to 800 tph (881 US tph)
- Heavy duty, incline belt feeder with hydraulic folding hopper sides
- Hydraulic load sensing on under screen conveyor circuit & fines circuit
- Aggressive heavy duty triple shaft screen, with adjustable stroke angle
- Jack up screen facility to aid mesh changes
- Screen walkway and access steps
- Screen media interchangeable with H range products
- Jack up legs for screen levelling
- Hydraulic folding conveyors with excellent stockpiling capacity
- Heavy duty triple shaft screen box with adjustable frequency, timing & amplitude
