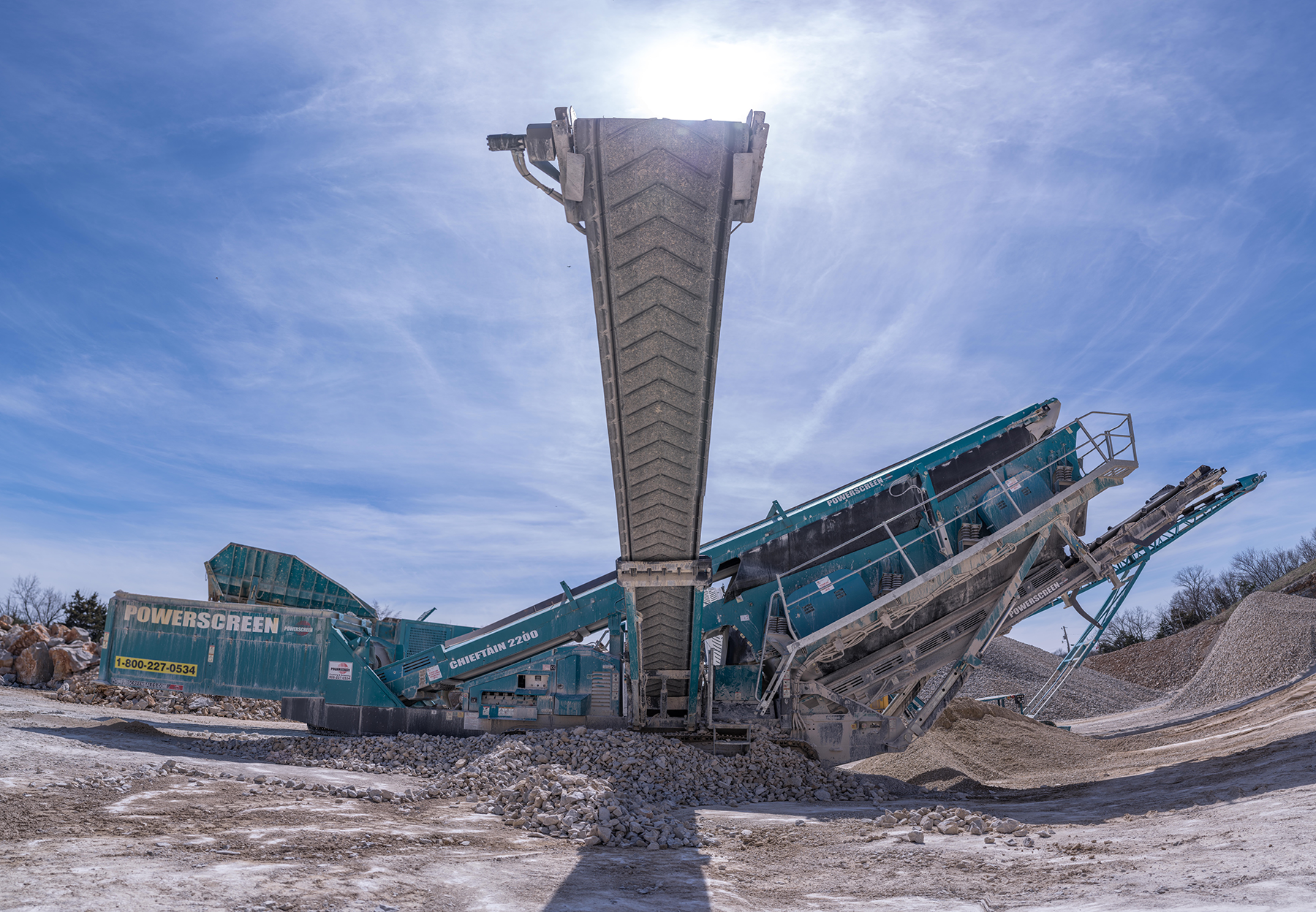

Powerscreen Chieftain 2200
The Powerscreen® Chieftain 2200 is designed for operators who require large volumes of high specification products with maximum versatility. The Chieftain 2200 has two highly versatile double deck screenboxes which provide a total screening area of 19.5m2. It has a revolutionary patent pending drive system which allows switching between 2 and 4 bearing with bolt-on parts. The maximum variability of the Chieftain offers improved capabilities over its class rivals, especially in sticky scalping applications.
User benefits include a quick set-up time (typically under 30 minutes) with hydraulically folding conveyors and track mobility. Its high aggression screenboxes handle dirty, sticky material with ease.
| With Grid | With Double Deck Vibrating Grid | |
|---|---|---|
| Weight (Est) | 35,350kgs (78,000lbs) | 39.350kg (86.750lbs) |
| Transport Width | 3m (9'10") | 3m (9' 10") |
| Transport Length | 19.79m (64' 11") | 19.79m (64' 11") |
| Transport Height | 3.55m (11' 7") | 3.6m (11' 10") |
| Working Width | 18.3m (60') | 18.3m (60') |
| Working Length | 20.05m (65'10") | 20.05m (65' 10") |
| Working Height | 7.89m (25'11") | 7.89m (25'11") |
* All information subject to machine configurations & specifications ordered.
** Powerscreen reserves the right to change specifications without prior notice.
- Output Potential: up to 650 tph (715 US tph)
- 2 x double deck screenboxes
- Patent pending drive system to switch between 2 and 4 bearing arrangements
- Radio controlled tipping grid
- Integrated high capacity variable speed belt feeder
- Heavy duty single shaft screenboxes with adjustable stroke, angle and speed
- Hydraulic screen tensioning (bottom deck)
- Screen walkway and access ladder
- Hydraulic folding conveyors with excellent stockpiling capacity
