Powerscreen Chieftain 2100X
The Powerscreen® Chieftain 2100X is designed for medium to large scale operators who require large volumes of high specification products. The Chieftain 2100X / Chieftain 2100S is the largest model to feature a high capacity hopper, belt feeder, and radio controlled tipping grid. Key features include a patented hydraulically folding recirculating conveyor on the 3 deck version eliminating the need for a crane on site and a 2 bearing screen with adjustable screen amplitude and hydraulic screen angle adjustment.
User benefits include a quick set-up time (typically under 30 minutes) with hydraulically folding conveyors and track mobility, class-leading stockpile discharge heights and a drop down tail conveyor to aid screen media changes.
Powerscreen Chieftain 2100X
Check out the Powerscreen Chieftain 2100X
specifications and features.
| Track (2 Deck) | Track (3 Deck) | |
|---|---|---|
| Weight (Est) | 34,700kgs (76,500lbs) | 40,200kgs (88,625lbs) |
| Transport Width | 3m (9'9") | 3m (9'9") |
| Transport Length | 18m (59'11") | 18m (59'11") |
| Transport Height | 3.32m (10'11") | 3.45m (11'4") |
| Working Width | 18.25 (59'10") | 18.25 (59'10") |
| Working Length | 19.25m (63'1") | 18.63m (61'1") |
| Working Height | 6.67m (21'11") | 6.67m (21'11") |
| Screenunit | 6.1m x 1.5m (20' x 5') | 6.1m x 1.5m (20' x 5') |
- Output potential up to 600 tph (661 US tph)
- 2 or 3 deck
- Radio controlled tipping grid
- Integrated high capacity variable speed belt feeder
- Oil bath lubricated 2 bearing screenboxes
- Hydraulic screen tensioning
- Screen walkways and access ladder
- Patented hydraulically folding conveyors with excellent stockpiling capacity
- Engine protection shutdown system

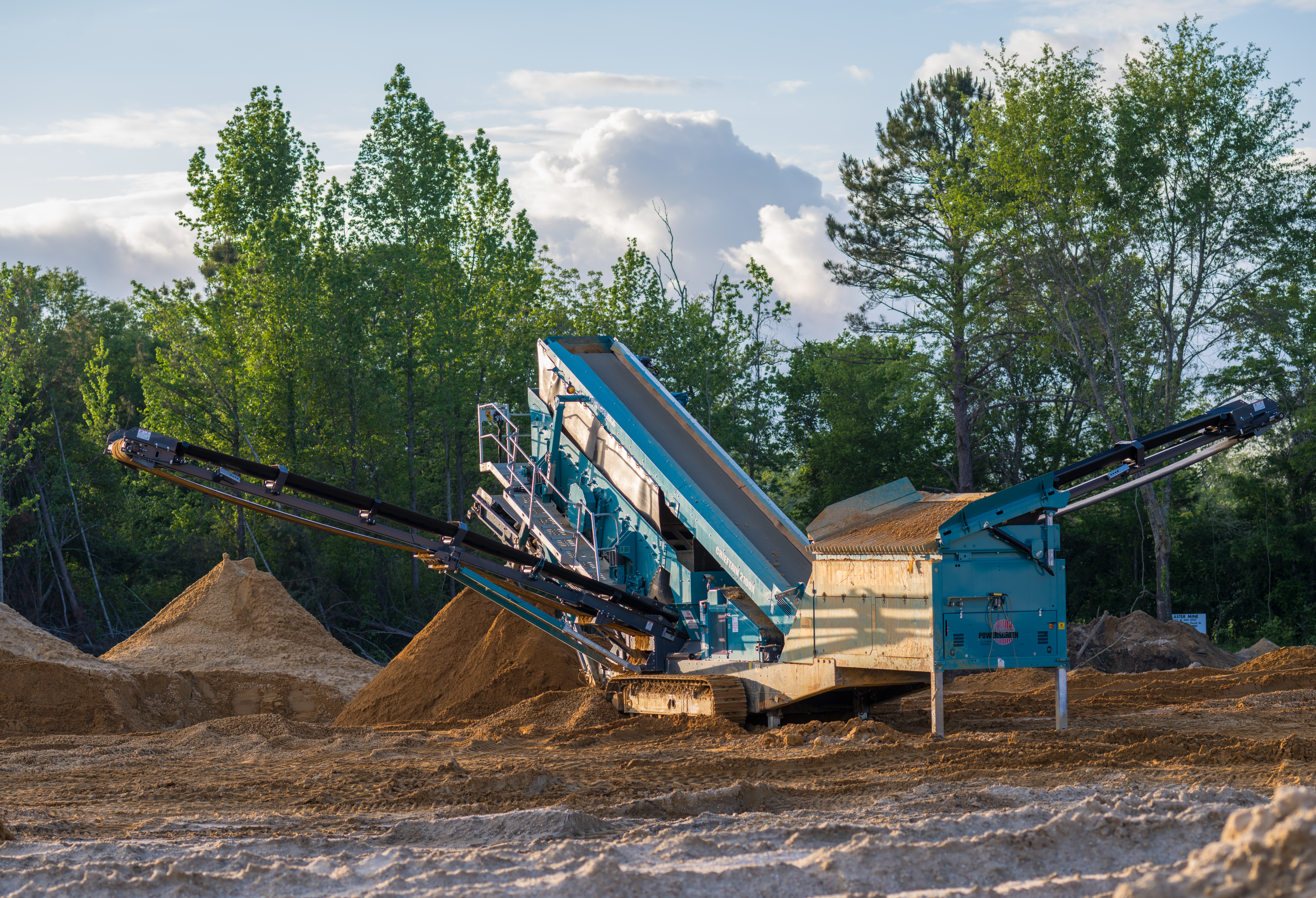

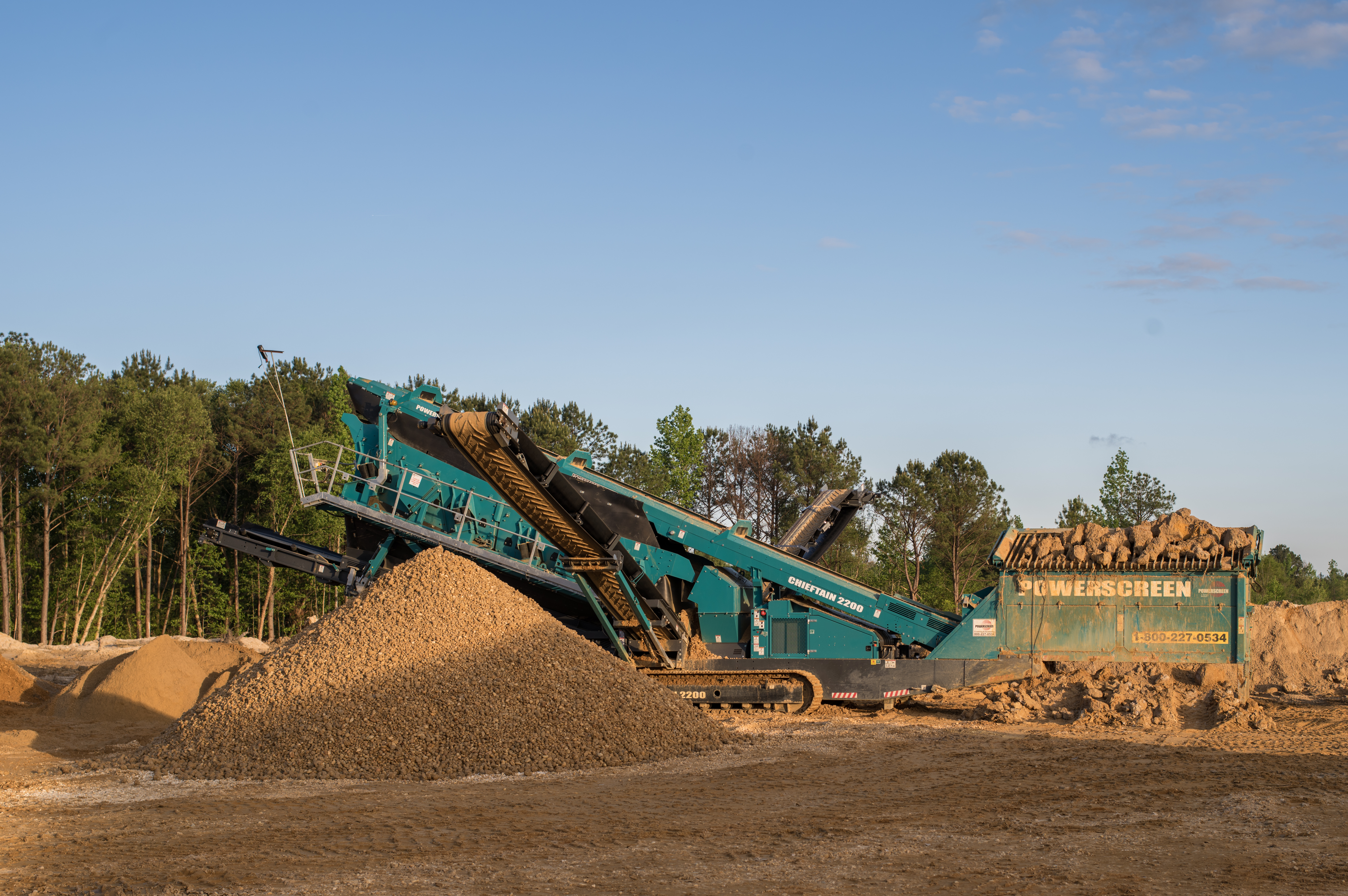

Image Gallery
