Powerscreen XH500 – XH500SR (Trakpractor 500 - 500SR)
The Powerscreen® XH500 is the flagship horizontal shaft impactor. It is versatile, efficient and highly productive, offering both excellent reduction and a high consistency of product yield in quarrying, recycling and demolition applications. It is ideally suited to contract crushing due to its high productivity and ease of set-up, operation and maintenance.

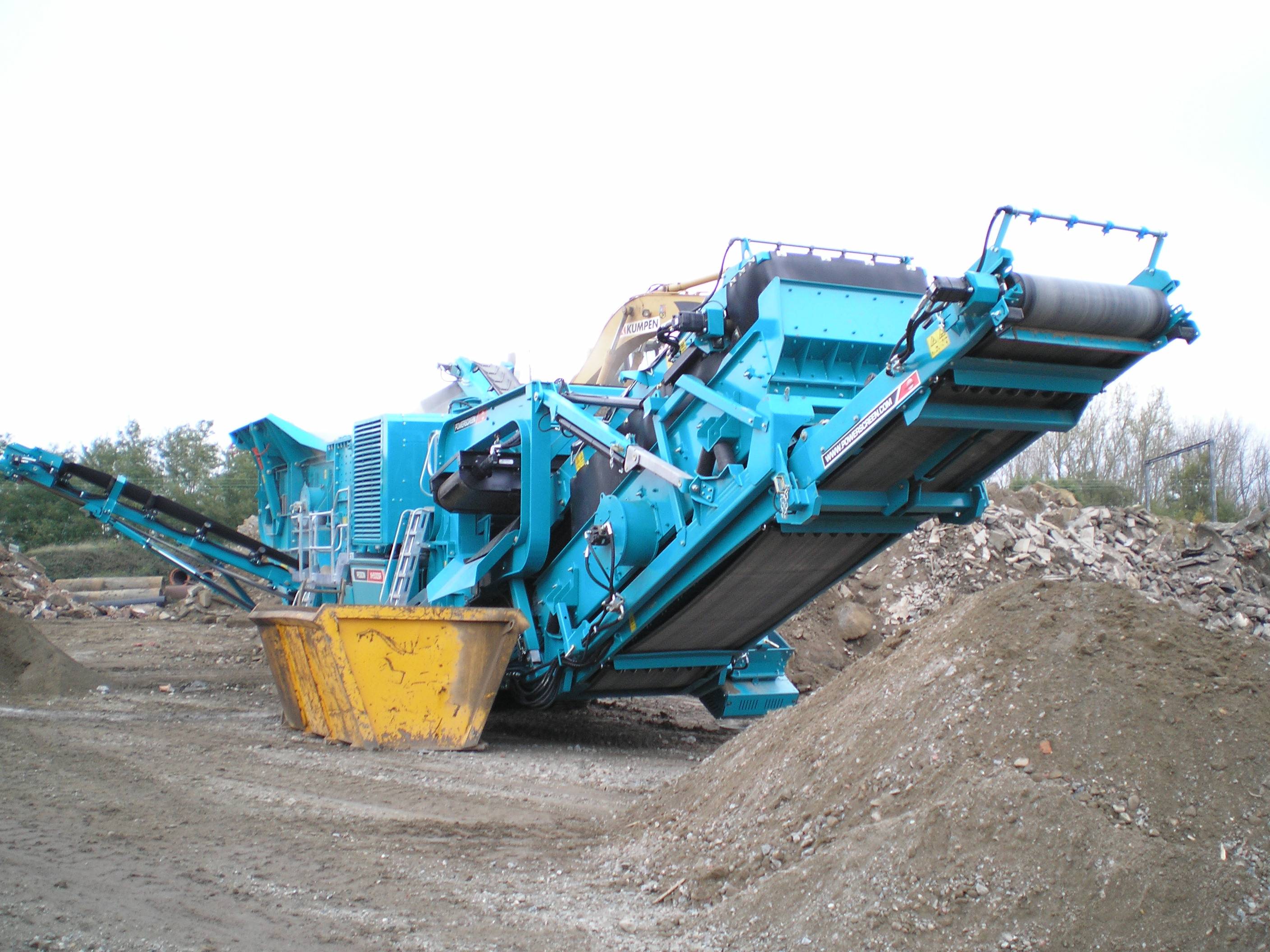

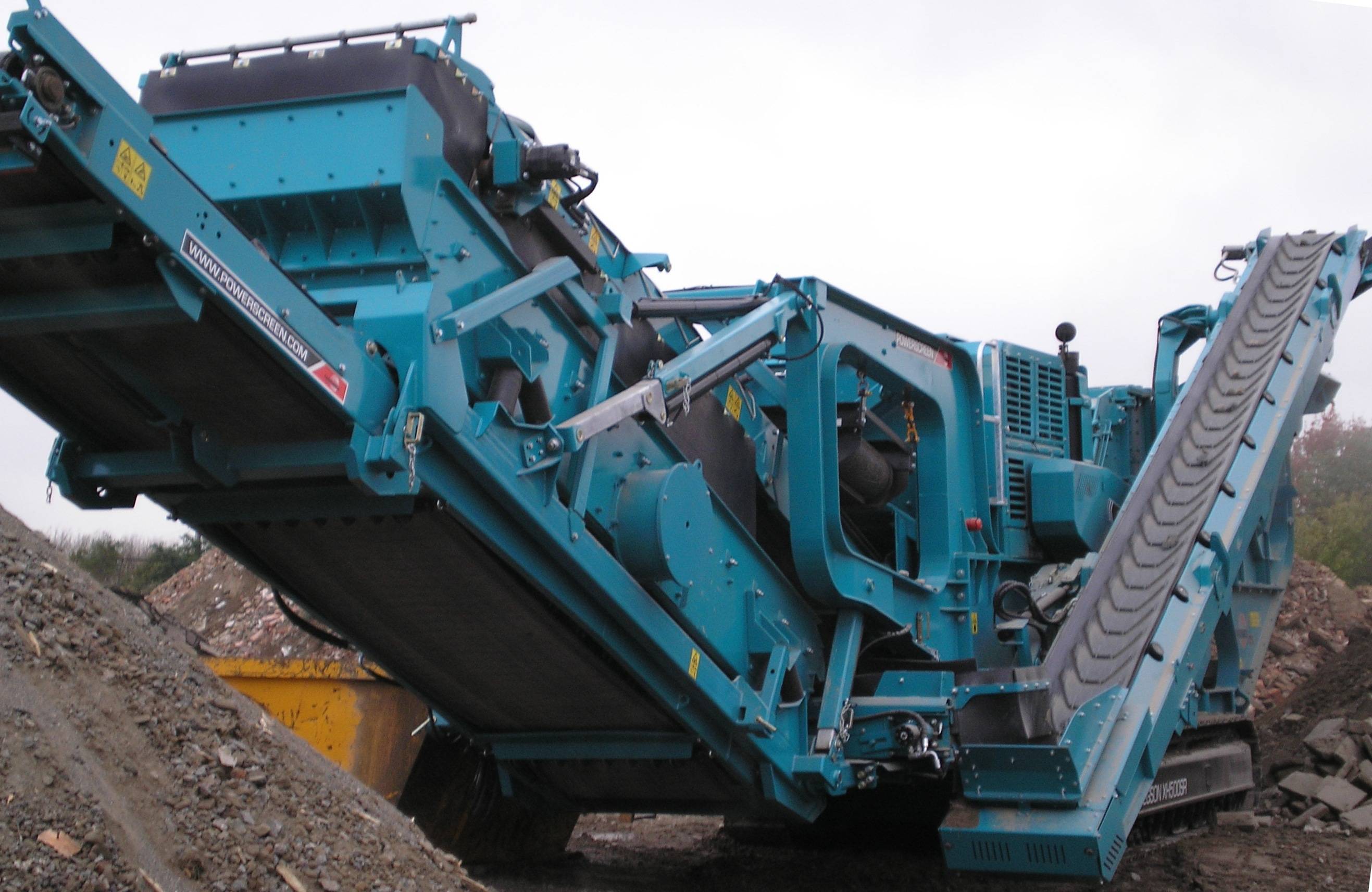

The Powerscreen® XH500SR offers further versatility in operation with a screen recirculating (SR) conveyor which returns an oversized product to the crusher for further reduction.
Powerscreen XH500 – XH500SR
Check out the Powerscreen XH500 – XH500SR
specifications and features.
| Powerscreen XH500 | Powerscreen XH500SR | |
|---|---|---|
| Weight (Est) | 52,000kgs (114,650lbs) | 67,000kgs (147,710lbs) |
| Transport Width | 3.05m (10’) | 3.27m (10’9”) |
| Transport Length | 17.9m (58'8") | 19.09m (62'7") |
| Transport Height | 3.8m (12'6") | 3.8m (12'6") |
| Working Width | 7.0m (22'11") | 7.1m (23'4") |
| Working Length | 17.6m (57'9") | 20.7m (67'11") |
| Working Height | 4.36m (14'4") | 5.47m (17'11") |
- Output Potential: up to 500 tph (550 US tph)
- Suitable for a variety of feed materials including recycling, demolition and quarry applications
- Load management system to control feeder speed
- Live pre-screen (XH500SR)
- Fully independent under crusher vibrating pan feeder
- Impact crusher with hydraulic overload protection
- 4 bar rotor with twin apron design
- Crusher speed variation through user friendly PLC control system
- Modular conveyor with raise/lower facility to aid clearance of rebar
- Economical to operate with a highly fuel efficient direct drive system
- Hydraulically folding recirculation conveyor, no crane required during set-up (XH500SR)
