2019 Powerscreen Trakpactor 320 With Pre-Screen

2019 Powerscreen Trakpactor 320 With Pre-Screen
  • MOBILITY: Track
  • ENGINE: Scania DC9
  • TYPE: Impactor w/ PreScreen
  • YEAR MFG: 2019
  • CONDITION: Excellent
  • HOURS: 487
  • PRICE: $540,000.00
2019 Powerscreen Trakpactor 320 With Pre-Screen
Check out the 2019 Powerscreen Trakpactor 320 With Pre-Screen specifications and features.
Specifications
Features
Options
Brochures

Specification
Trakpactor 320
Total weight VGF
35,280kg (77,779lbs)*
Total weight PS
38,160kg (84,128lbs)*


Transport
Length
14.78m (48’ 6”) *
Width
2.55m (8’ 4”) *
Height
3.46m (11’ 4”) *


Working
Length
14.36m (47’ 1”) *
Width
5.61m (18’ 5”) with side conveyor deployed
Height
3.9m (12’ 10”)

  • Output potential up to 320 tph (353 US tph)
  • Double deck grizzly feeder with under screen
  • Load management system to control feeder speed
  • Suitable for a variety of feed materials
  • Proven Terex Impact Crusher with hydraulic overload protection, 4 bar rotor & twin apron design
  • Crusher speed variation through user friendly PLC control system
  • Fully independent under crusher vibrating pan feeder (option)
  • Modular conveyor with raise/lower facility to aid clearance of rebar
  • Powerful overband magnet (optional)
  • Designed to give optimum performance in both quarry, demolition & mining applications
  • Latest generation powerunits that meet EU Stage IIIB / US Tier 4i & EU Stage IIIA / US Tier 3
    emissions legislation
  • Hydraulically operated clutch & highly fuel efficient direct drive system
  • Independent hydraulic prescreen for increased fines removal before the chamber (option)
  • SR configuration optional with 2 deck 3.3m x 1.5m (11’ x 5’) post screen with detachable 2 deck post screen and fines conveyor

Crusher Specification
 Feed opening: 1130mm x 800mm (44.5” x 31.4”)
 Maximum piece size* 450mm3 (18in3 ) / 780mm (31”) diagonally / 800x500x250mm (31x20x10”) slab
* depending on material & blowbar spec
 Rotor width: 1100mm (43.3”)
 Rotor diameter: 1040mm (41”)
 Number of aprons: 2
 Maximum Clearance: 180mm (7”) on both aprons
 Maximum OSS setting: 150mm (6”) upper apron, 75mm (3”) lower apron
 Minimum CSS setting: 50mm (2.4”) upper apron, 20mm (0.75”) lower apron
 Number of blowbars: 4
 Blowbar removal: Vertically
 Blowbar configuration: 2 full & 2 half (Optional 4 full)
 Setting adjustment: Hydraulic assist
 Overload protection: Hydraulic
 Rotor speeds: 595 - 735rpm (32 - 40 m/s) (105 - 131 ft/s)
 Applications: Demolition/Recycling/Quarry
 Crusher weight: 8500kg (18,740lbs)
 Full Blowbar weight: 220kg (485lbs)
 Side liners: 20mm (0.75”) thick, abrasive resistant steel

Powerscreen Trakpactor 320 Brochure EN .pdf

Image Gallery

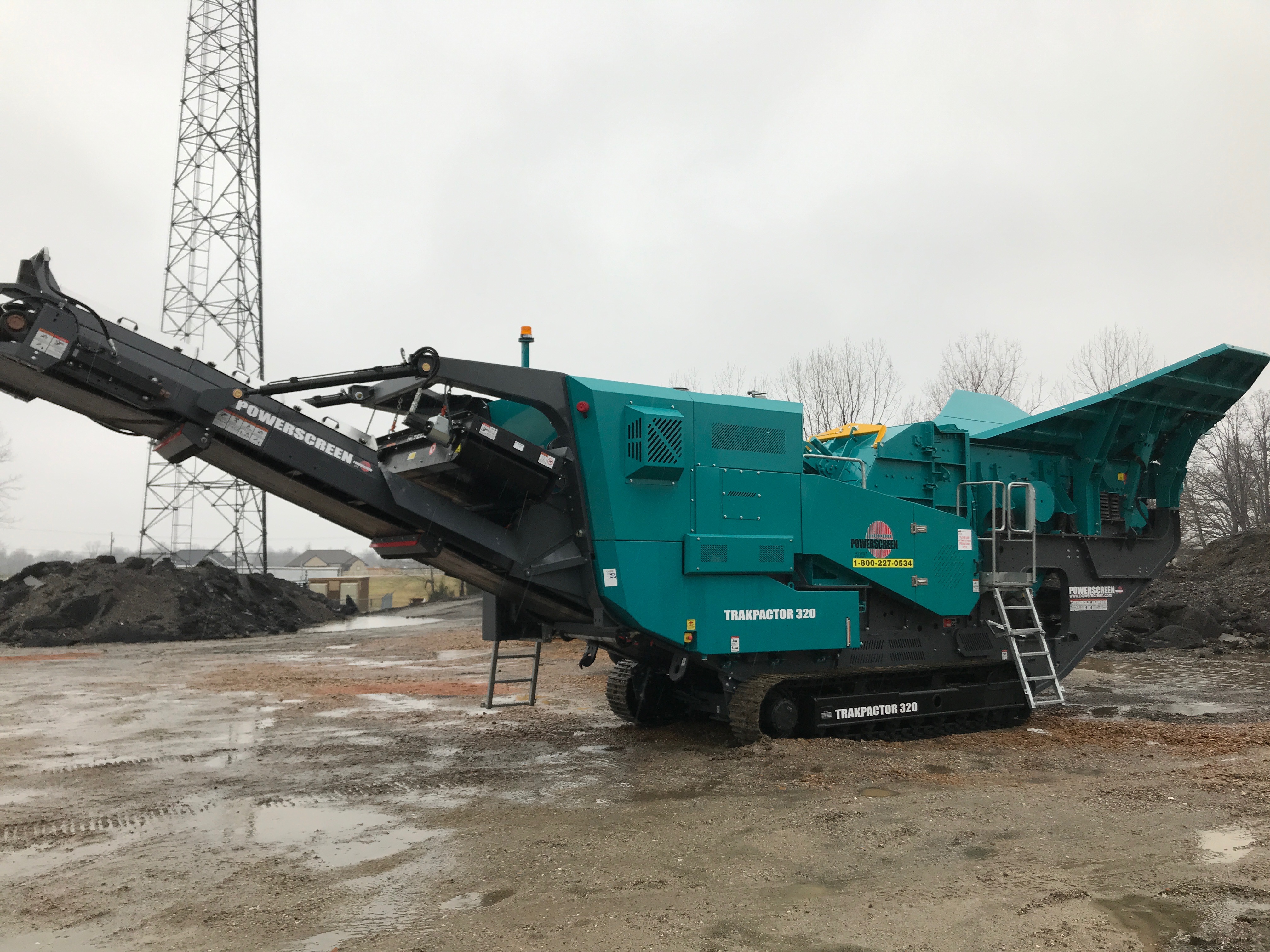

2019 Powerscreen Trakpactor 320 With Pre-Screen

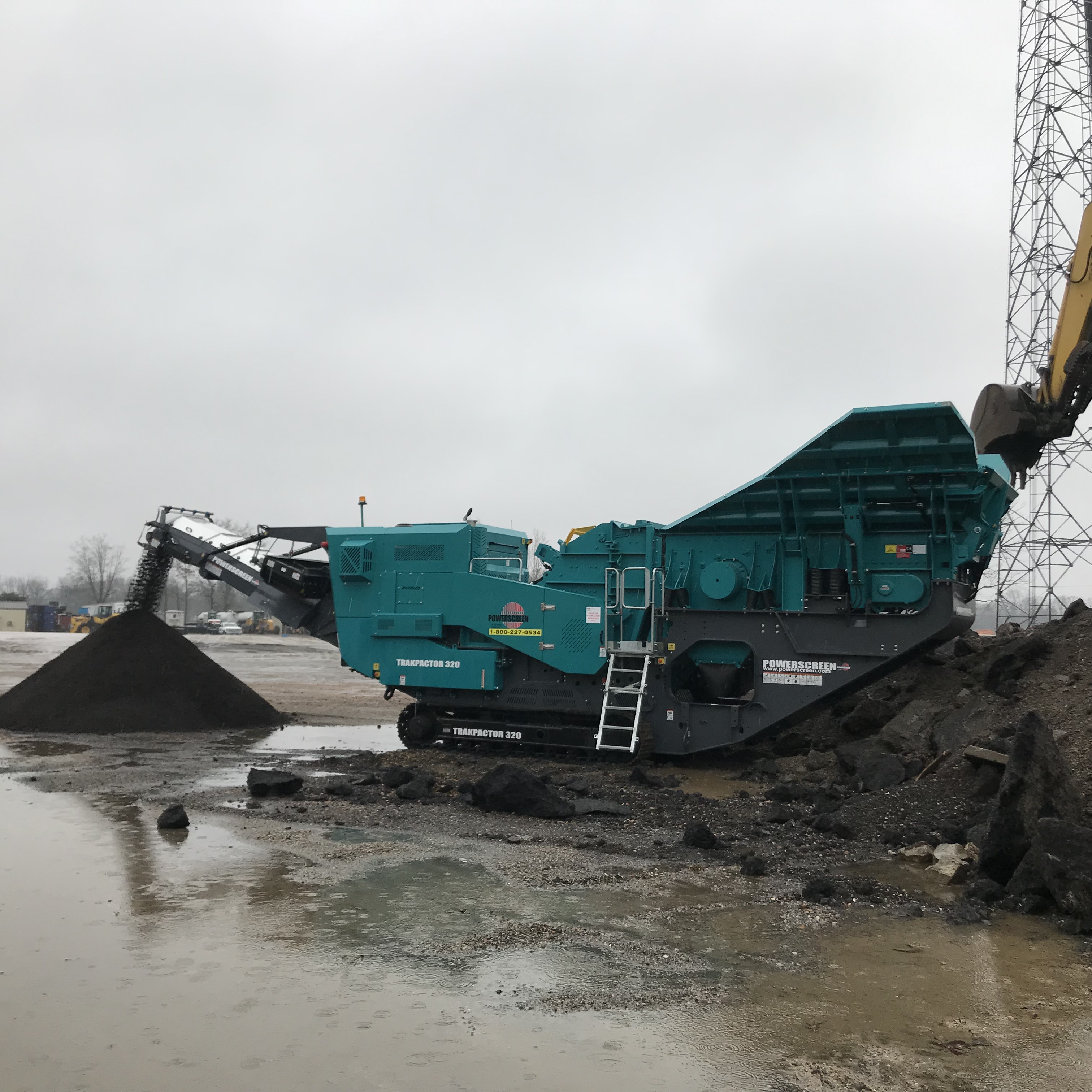

2019 Powerscreen Trakpactor 320 With Pre-Screen

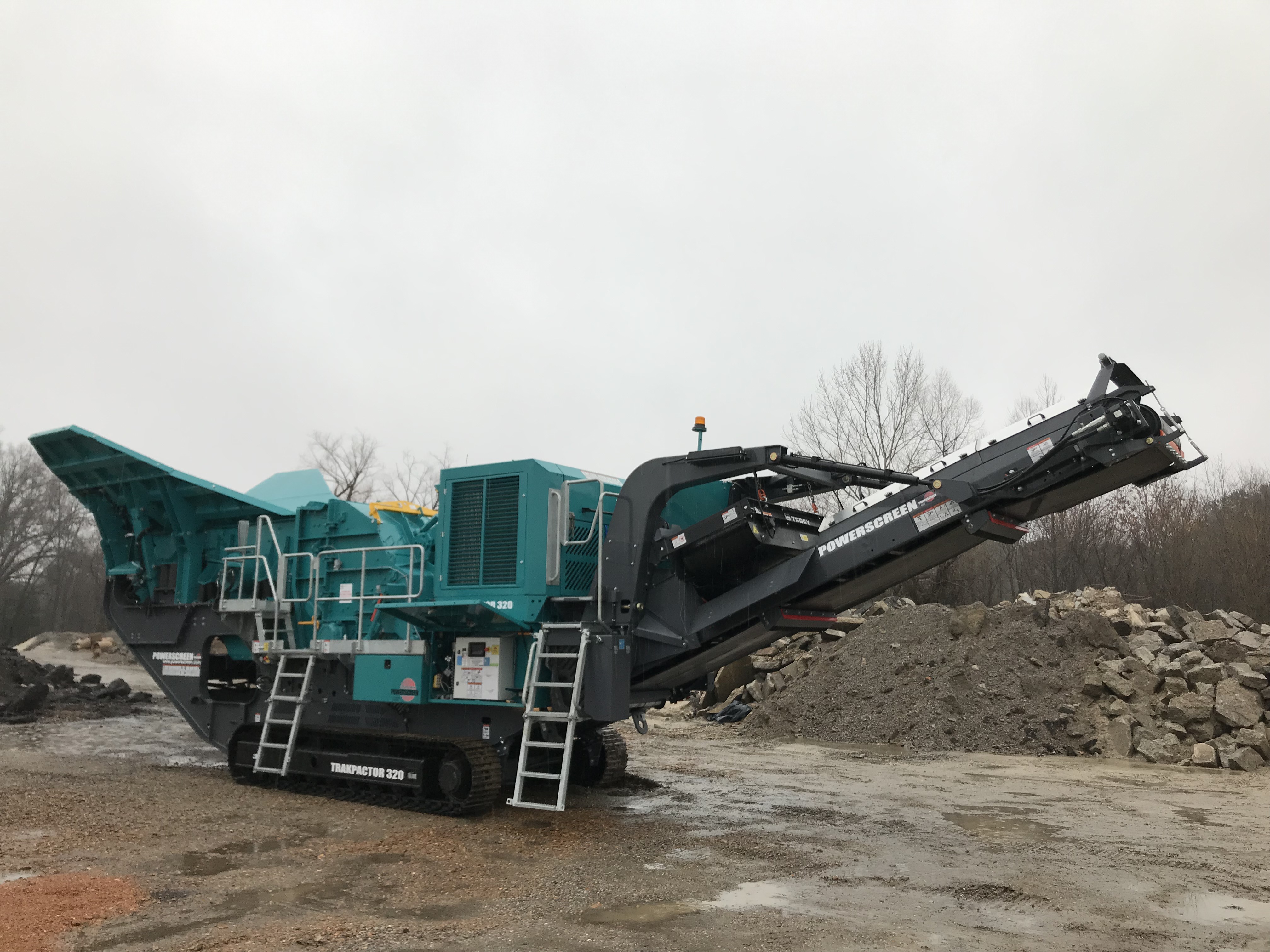

2019 Powerscreen Trakpactor 320 With Pre-Screen

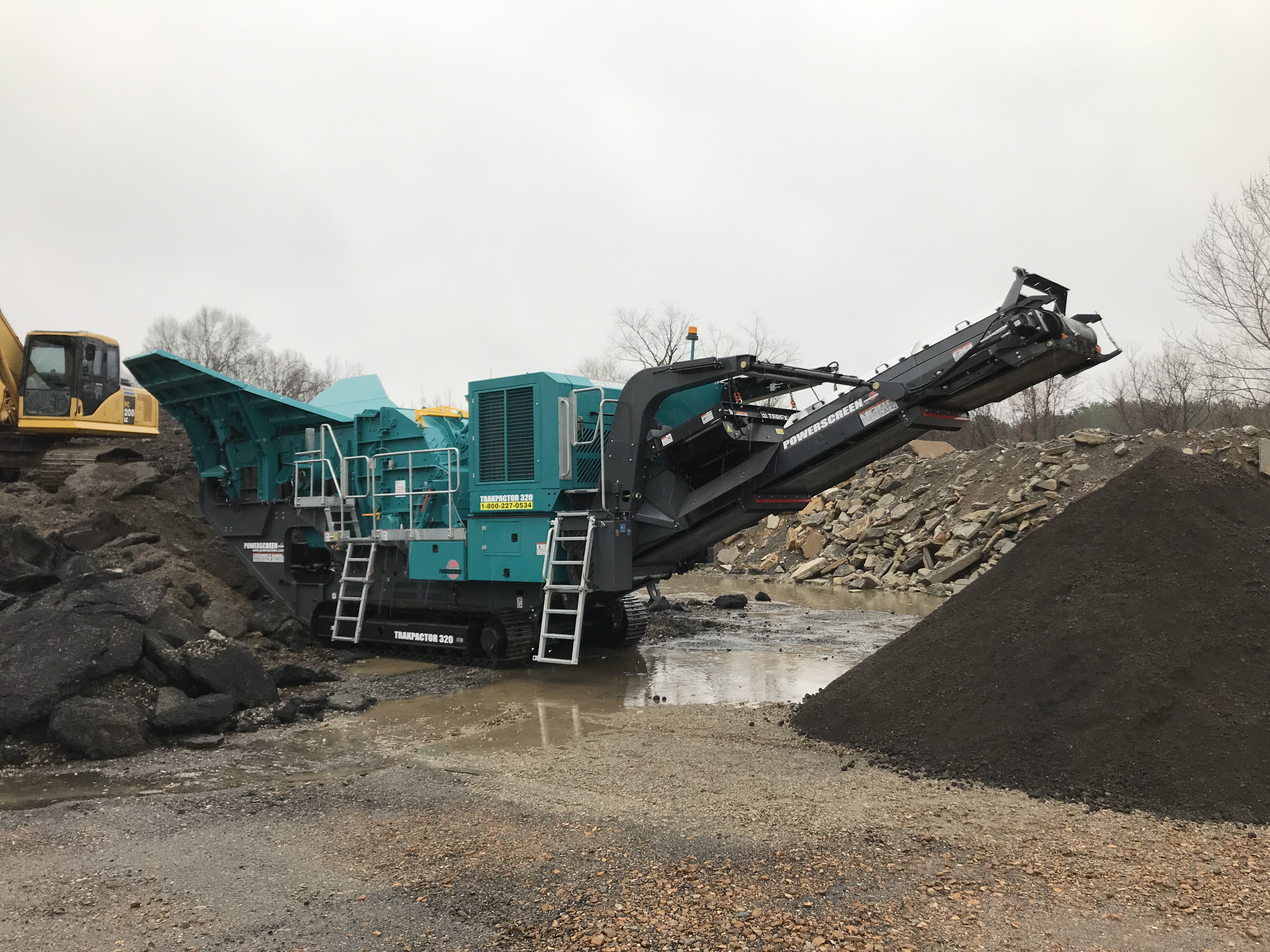

2019 Powerscreen Trakpactor 320 With Pre-Screen
