2019 Powerscreen Chieftain 1700 Track 3 Deck

2019 M1700 TRACK 3 DECK
  • REGULAR TIPPING GRID
  •  CAN COME M-SPEC RINSER
  • MOBILITY: Track
  • ENGINE: CAT 4.4 T4
  • SCREEN: 16x 5 3 Decks
  • YEAR MFG: 2019
  • HOURS: 150
  • PRICE: $345,000.00
2019 Powerscreen Chieftain 1700 Track 3 Deck
Check out the 2019 Powerscreen Chieftain 1700 Track 3 Deck specifications and features.
Specifications
Features
Options
Brochures
  Tracked (2 Deck) Wheeled (2 Deck)  Tracked (3 Deck) Wheeled (2 Deck)
Weight (est.) 26,900kgs (59,304lbs) 24,700kgs (54,454lbs) 28,800kg (65,698lbs) 27,500kgs (60,627lbs)
Transport width 3m (9'10") 3m (9'10") 3m (9'10") 3m (9'10")
Transport length 16.53m (54'3") 16.81m (55'2") 16.53m (54'3") 16.81m (55'2")
Transport height 3.4m (11'3") 3.6m (11'10") 3.5m (11'6") 3.88m (12'9")
Working width 17.32m (56'10") 17.32m (56'10") 17.32m (56'10") 17.32m (56'10")
Working length 17.22m (56'6") 17.22m (56'6") 17.22m (56'6") 17.22m (56'6")
Working height 5.82m (19'1") 6.21m (20'4") 5.89m (19'4") 6.19m (20'4")
Screen unit 4.8m x 1.5m (16'x5') 4.8m x 1.5m(16'x5') 4.8m x 1.5m (16'x5') 4.8m x 1.5m (16'x5')












  • Output potential: up to 500 tph (551 US tph)
  • 2 or 3 deck
  • Radio controlled tipping grid
  • Integrated high capacity variable speed belt feeder
  • Grease filled 2 bearing screen box
  • Heavy duty single shaft screenboxes with adjustable stroke, angle & speed
  • Screen walkway & access ladder
  • Hydraulic folding conveyors with excellent stockpiling capacity
  • Patented fully mounted hydraulic folding auxiliary stockpile conveyor (3 deck)
  • Engine protection shutdown system
  • Wheel or track mobile
  • Double deck vibrating grizzly
  • Radio controlled tracks
  • Dual power (additional electric hydraulic drive)
  • Roll-in bogie prepared
  • Roll-in bogie equipped
  • Quick release screen wedge tensioning
  • Anti roll-back
  • Auto lubrication system
  • Dust suppression
  • Extended recirculation conveyor attached for transport (3 deck)
  • Hydraulic screen tensioning (Bottom Deck)

Chieftain 1700 Brochure

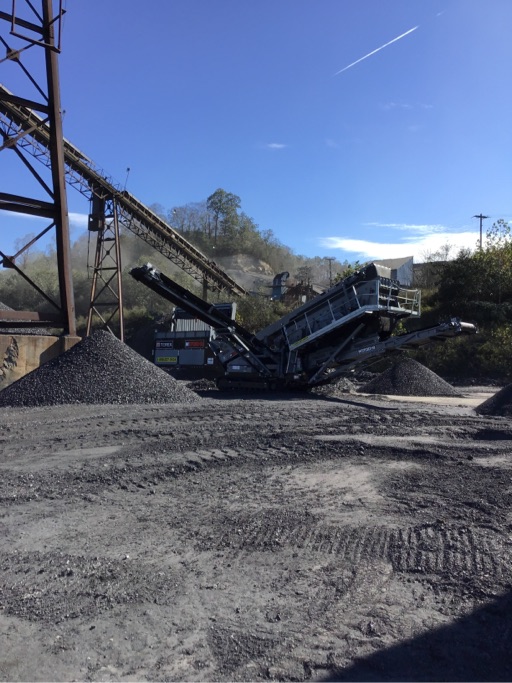

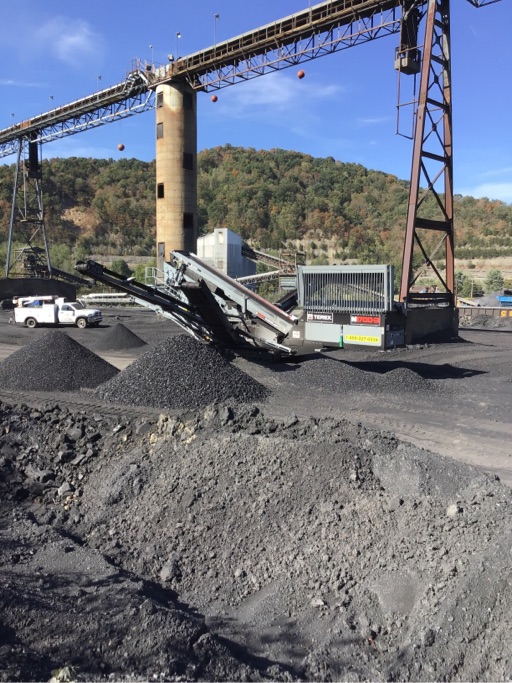

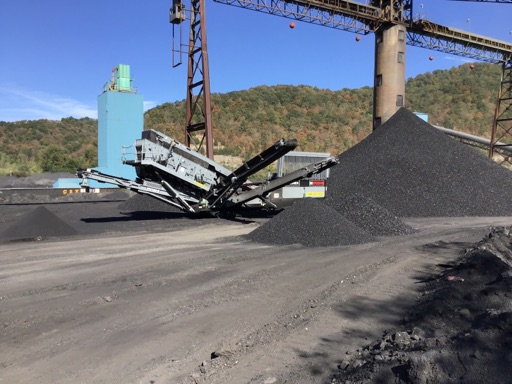

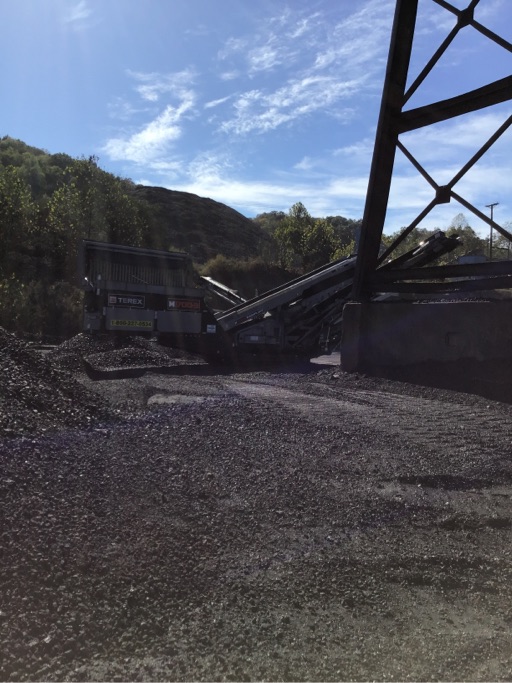

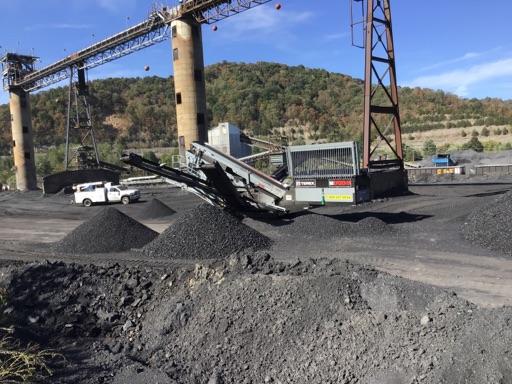

Image Gallery

2019 M1700 TRACK 3 DECK
2019 M1700 TRACK 3 DECK
2019 M1700 TRACK 3 DECK
2019 M1700 TRACK 3 DECK
2019 M1700 TRACK 3 DECK
