POWERSCREEN H5163 – H6203
The adjustable elliptical throw combines linear and circular amplitude producing an aggressive screening action. Powerscreen® H products are especially effective for scalping after a primary impact or jaw crusher and really have outstanding performance when screening out specific small sizes.
POWERSCREEN H5163 – H6203
Check out the POWERSCREEN H5163 – H6203
specifications and features.
| H5163 | H6203 | |
|---|---|---|
| Weight (Est) | 36,500kgs (80,469lbs) | 47,500kg (104,720lbs) |
| Transport Width | 3m (9'10") | 3.2m (10'6") |
| Transport Length | 17.87m (58'7") | 17.75m (58'3") |
| Transport Height | 3.4m (11'2") | 3.6m (11'10") |
| Working Width | 16.32m (53'7") | 16.25m (53'3") |
| Working Length | 18.6m (61') | 18.85m (61'10") |
| Working Height | 4.63m (15'2") | 4.75m (15'7") |
| Screenunit | 6.1m x 1.8m (20'x6') | 6.1m x 1.8m (20'x6') |
- Output potential up to: H5163: 600 tph (661 US tph)
- Output potential up to: H6203: 800 tph (882 US tph)
- High capacity variable speed direct feed belt feeder
- Heavy duty triple shaft screenboxes with adjustable stroke
- Oil bath screenbox bearing lubrication
- Elliptical throw (adjustable 16-19mm/0.55-0.75″)
- Hydraulic folding stockpiling conveyors
- Screen walkway and access ladder
- Diesel hydraulic power unit
- Heavy duty, low ground pressure tracks
- Engine protection and shut down system

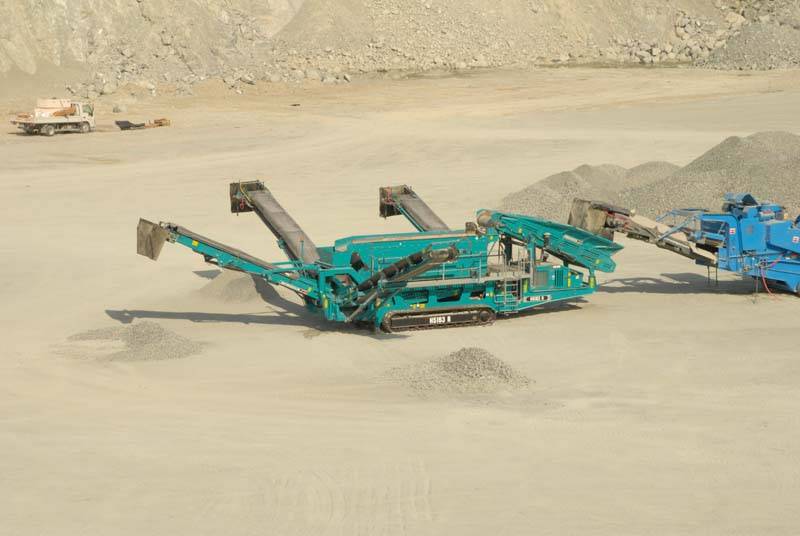

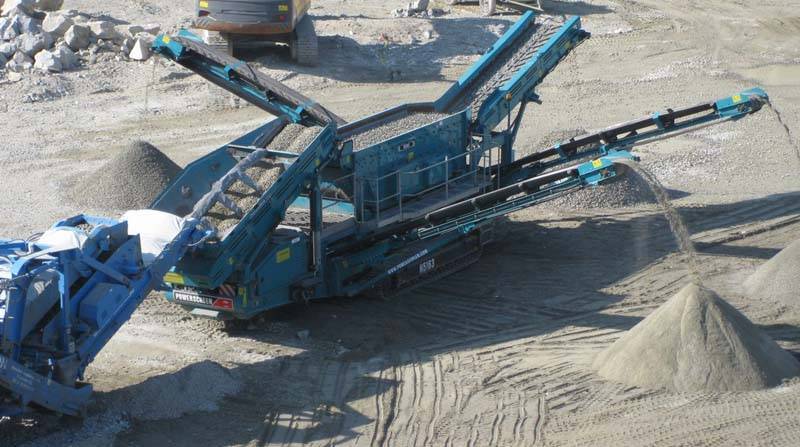

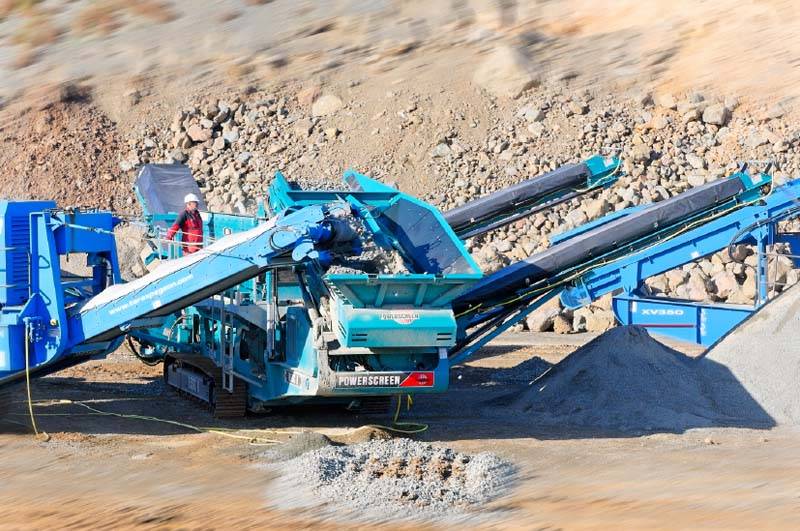

Image Gallery
