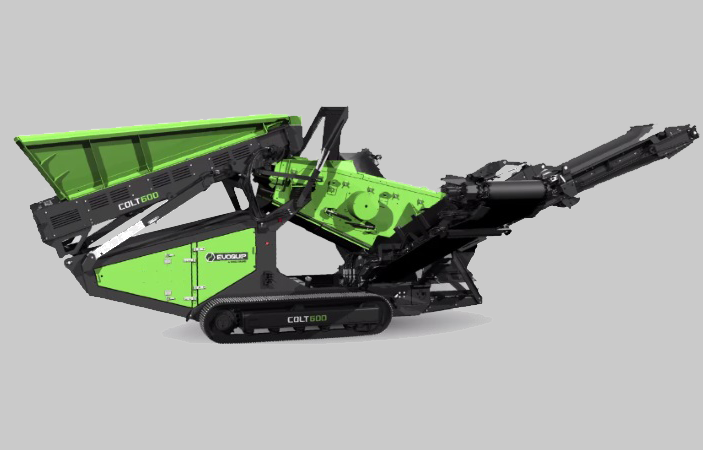

COLT 800
The Colt 800 heavy-duty screen is a compact and aggressive forward facing incline screen. This versatile plant can work in aggregates, sand and gravel, topsoil, construction demolition and recycling applications where site space is at a premium. The highly aggressive screenbox can accept a range of media. Its compact size, quick set-up times, ease of transport and ease of operation makes the COLT 800 the ideal solution for all small to medium-sized operators.
COLT 800
Check out the COLT 800
specifications and features.
SCREEN
- 2.44M X 1.2M (8’X4′)
- Single deck screen
- Side tensioned
- Screen can be lowered to horizontal to ease mesh change and maintenance
CONVEYOR
- 500mm (20″) Over side transfer conveyor
- 500mm (20″) Wide recirculation conveyor
- Both hydraulically fold for transport
- 1200mm (48″) Wide fines conveyor with 2.85m (9’4″) discharge
GENERAL
- After screen system is quick to detach
TRANSPORT
- Track unit: L 14.8m (48’6″) W 3m (9’10”) H 3.2m (10’6″)
- Weight (with Side Conveyor & Twin Pole Magnet) – 33,950Kgs (74,847lbs)
OUTPUT POTENTIAL
- Up to 250 tph / 275 US tph
- High capacity up to 280 tph / 308 US tph (depending on mesh sizes & material type)
- Maximum feed size 400mm. Maximum allowable feed size may vary depending on material
- Power unit featuring a transverse engine arrangement to aid access & serviceability
- Heavy duty single shaft incline screenbox with adjustable stroke & speed
- Maximum mobility with heavy duty, low ground pressure crawler tracks
- Removable heavy duty pendant remote control system
- Quick set up time
- High performance hydraulic system – cast iron pumps & motors complete with hydraulic cooler
- Hydraulic slide out facility on tail conveyor, maximum bottom deck access
- Versatile unit for three way splitting, stockpiling or scalping before or after a crusher
- Simple to operate & maintain
- Variable speed hopper featuring impact bars & rollers
- Wide range of screen media available
Contact us to request a brochure.
