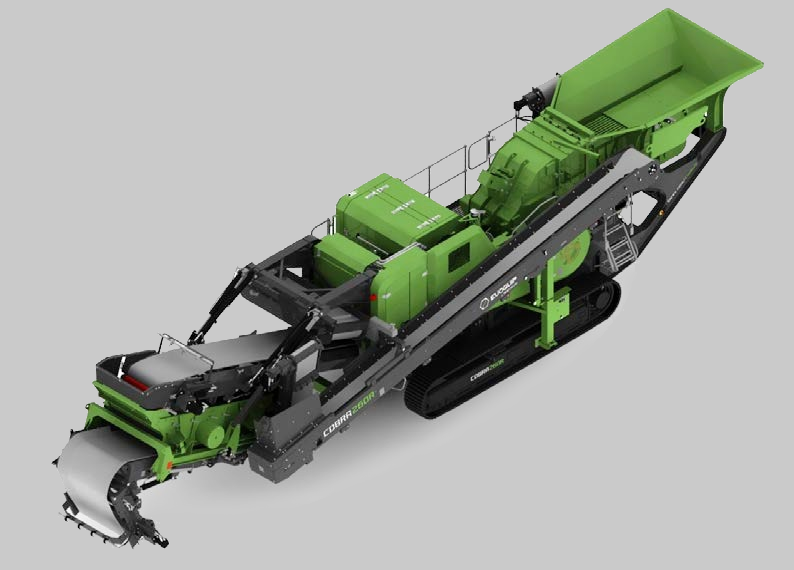

COBRA 260R

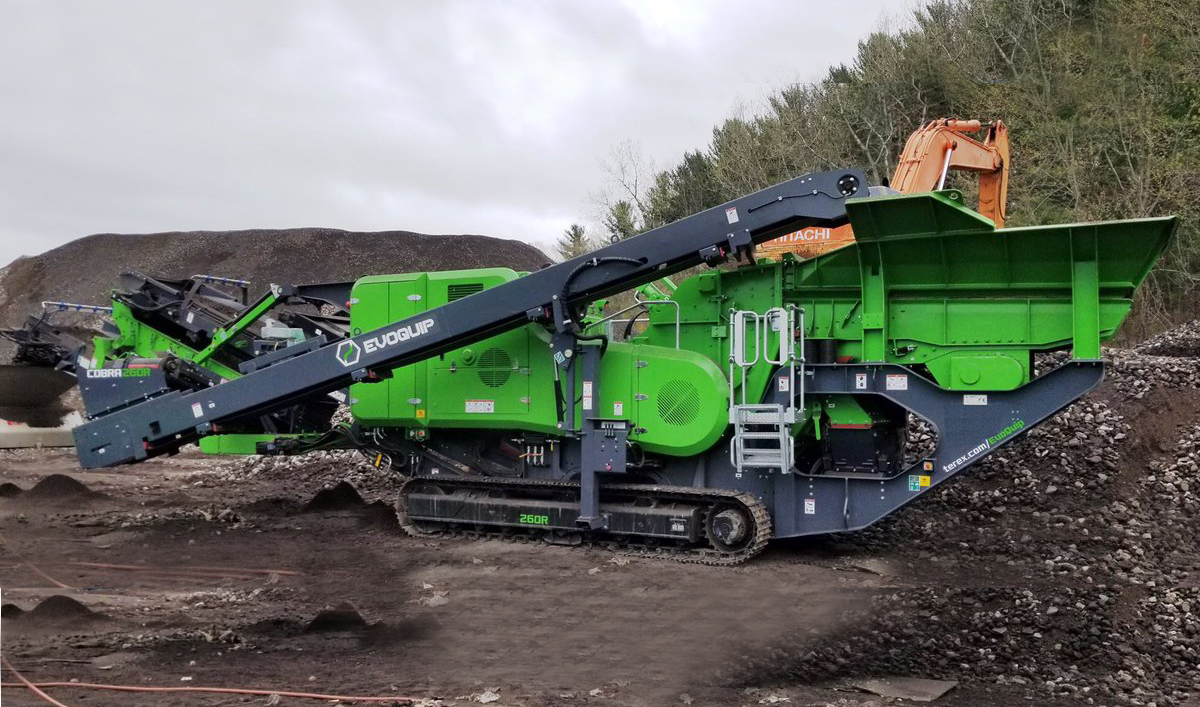

The EvoQuip Cobra 260R Horizontal Shaft Impactor is a highly compact tracked crusher designed to offer both excellent reduction & high consistency of product yield. The EvoQuip Cobra 260R is designed mainly for the recycling & demolition markets & is an ideal contractor machine due to its compact design & mobility. Its variable speed gives operators unprecedented levels of fuel efficiency and production in both recycling and quarrying applications. The Cobra 260R features hydraulic folding of all conveyors providing rapid set-up times and easy point to point moves when operating on multiple sites.
Screen: 2.44M X 1.2M (8’X4′) Single deck screen; Side tensioined; Screen can be lowered to horizontal
to ease mesh change and maintenance
Conveyor: 500mm (20″) Overside transfer conveyor; 500mm (20″) Wide recirculation conveyor;
Both hydraulically fold for transport; 1200mm (48″) Wide fines conveyor with 2.85m (9’4″) discharge
General: Afterscreen system is quick to detach
Transport Length 48' 6" (14.8m)
Transport Width 9' 10" (3m)
Transport Height 10' 6" (3.2m)
Weight (with Side Conveyor & Twin Pole Magnet): 33,950Kgs (74,847lbs)
Diameter Rotor 33" x 34" (830mm x 860mm)
Output Potential: 250 tph (275 US tph)
- Output potential 250 tph (275 US tph)
- Suitable for a variety of feed materials
- Ideal for recycling & demolition applications
- Replaceable tine bar cartridge style grizzly feeder
- Load management system to control feeder speed
- Proven Terex impact crusher with hydraulic overload protection, 4 bar rotor & twin aprons
- Crusher speed variation through user friendly PLC control system
- Fully independent under crusher vibrating pan feeder (Optional)
- Latest generation power unit that meets EU Stage IV / US Tier 4F emissions legislation
- HPTO clutch & highly fuel efficient direct drive system
- Modular conveyor with raise/lower facility to aid clearance of rebar
