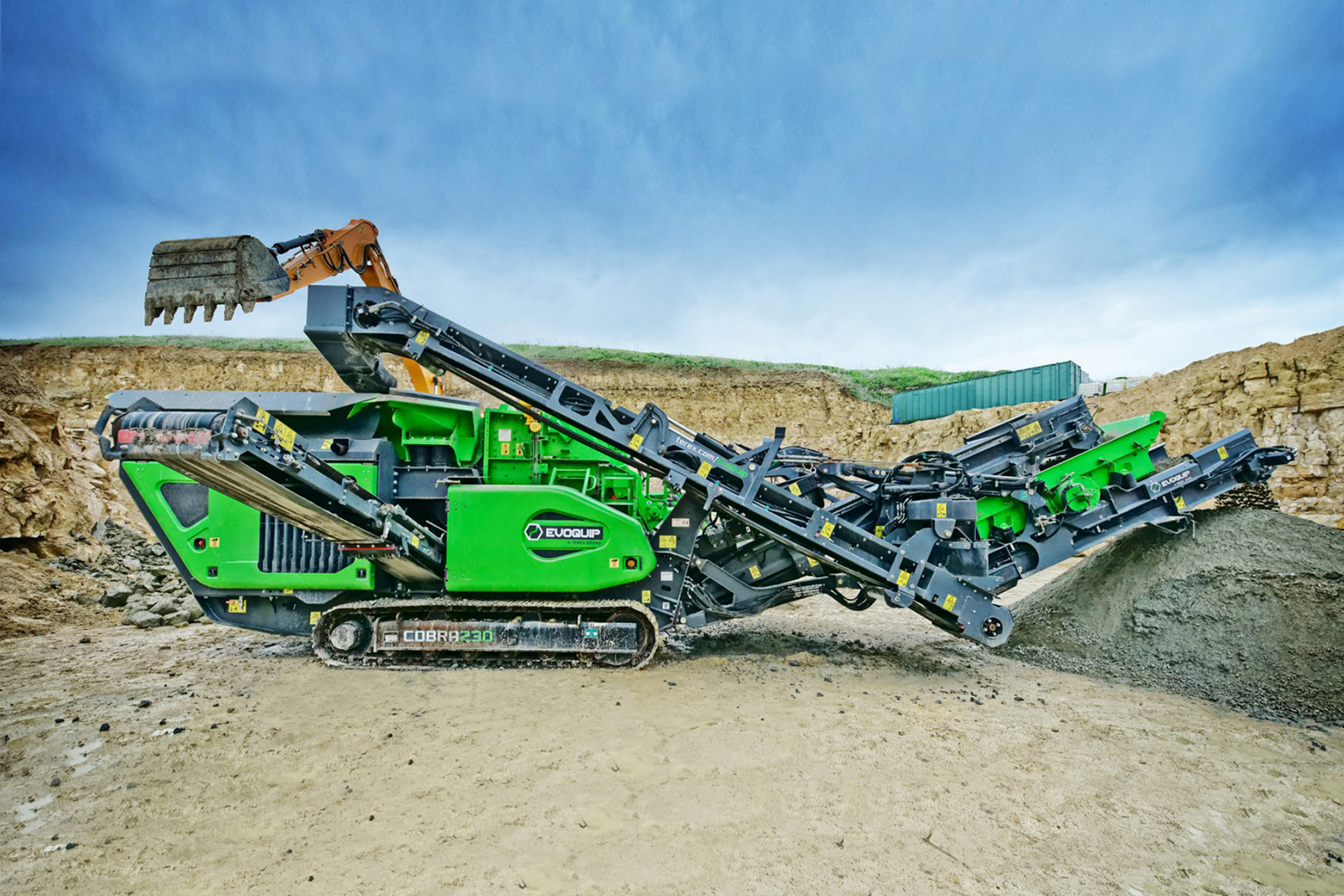

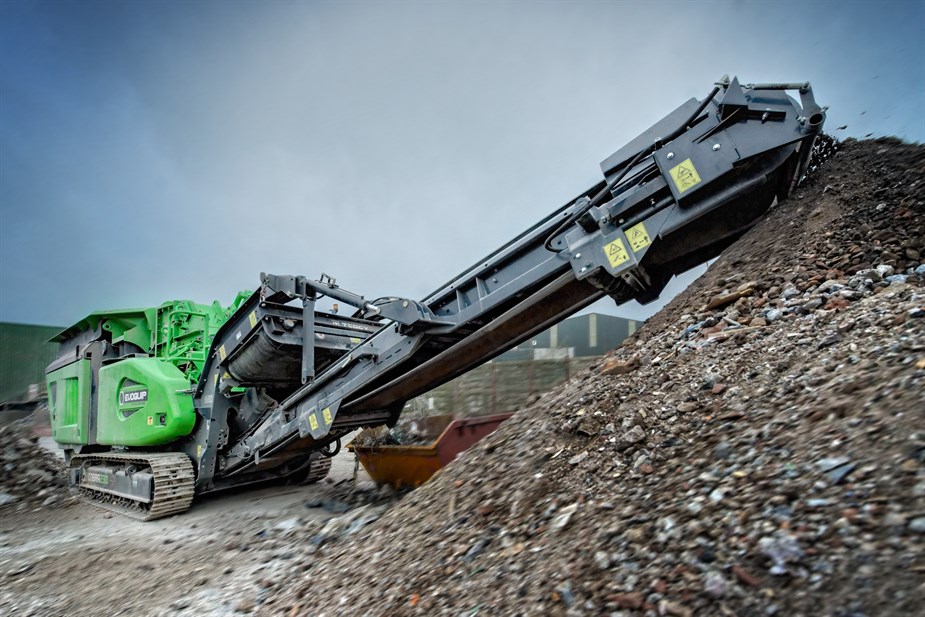

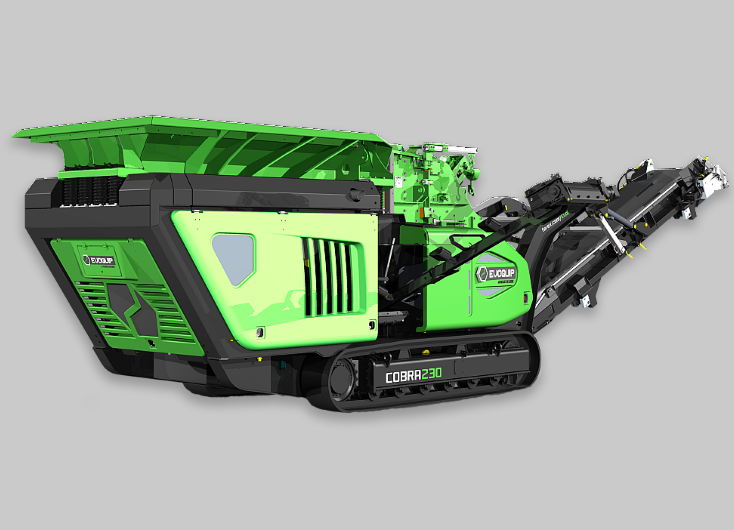

COBRA 230
The Cobra 230 is the new compact impact crusher from EvoQuip. No matter what line of work you’re in, whether it is Construction & Demolition, Asphalt Recycling, Quarrying or Contract Crushing the Cobra 230 will enhance your profitability. The Cobra 230 Impact Crusher is a machine that provides class leading productivity, unmatched versatility and excellent fuel efficiency. The quick set up times, simple intuitive operation and ease of transport makes this machine an ideal solution for all applications
Hopper capacity: 2.6m3 (3.4yd3)
Crusher inlet: 860mm (34″) x 610mm (24″)
Diameter rotor: 830mm (33″) Wide x 860mm (34″)
Output Potenial: Up to 250 tph / 275 US tph
John Deere 194kW / 260Hp Constant
Tier 4F: Volvo 205kW / 275Hp
Product conveyor width: 900mm (36″)
Product conveyor discharge height: 3m (9’10”)
Transport Length: 9.32m (30’7″)
Transport Width: 2.46m (8’1″)
Transport Height: 3m (9’10”)
Diameter Rotor: 830mm x 860mm (33" x 34")
Weight: 23.7mT / 52250lbs
- Integrated pre-screen for fines removal
- Feeder speed auto regulates based on crusher load
- 2 High / 2 low configuration as standard
- Two independent aprons
- Hydraulic overload protection as standard
- Ease of setting adjustment
- Simple intuitive push button operation
See brochure for more information.
