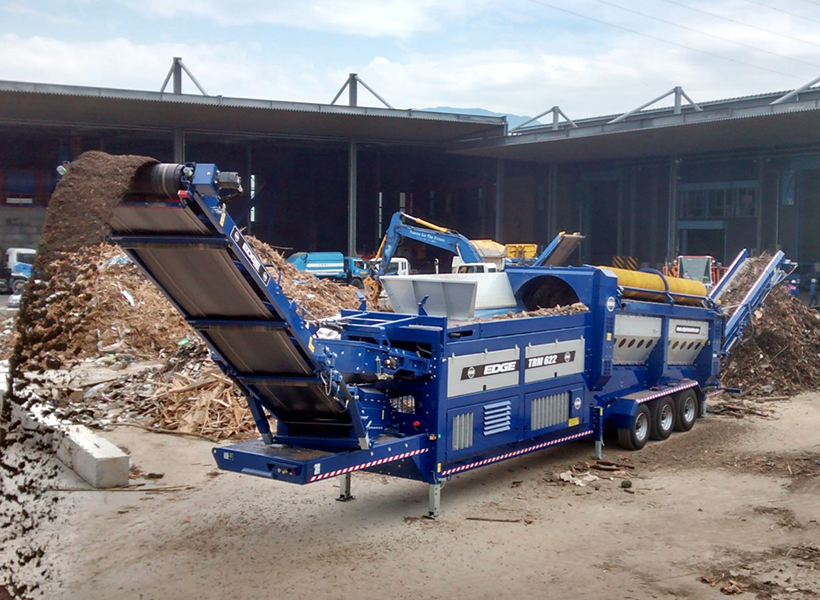

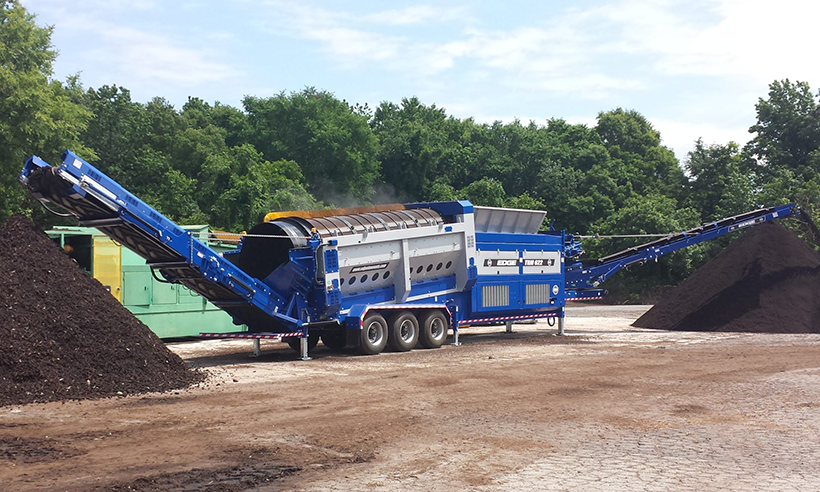

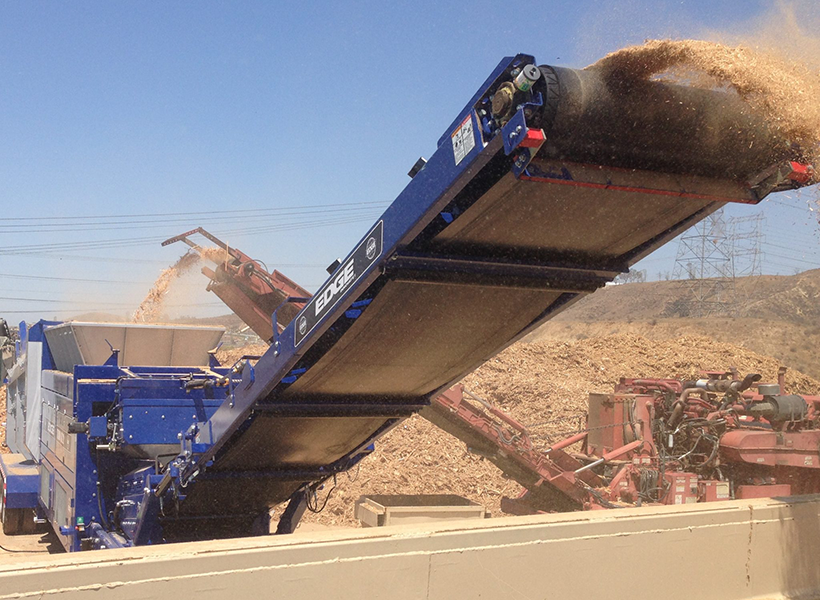

TRM622 MOBILE
The EDGE TRM622 Mobile Trommel screen combines high production rates with ease of use in a robust, portable and versatile screening plant that is ideal for applications such as topsoil, recycling, composting and is proven in construction and demolition waste. Designed for zero material spillage and quick drum exchange.
TRM622 MOBILE
Check out the TRM622 MOBILE
specifications and features.
Weight: 32 tonne (35.2 UST)
Transport Width: 2.9M (9’5″)
Transport Length: 18.4M (60’4″)
Transport Height: 4.1M (13’6″)
Working Width: 2.9M (9’5″)
Working Length: 27.7M (90’9″)
Working Height: 5M (16’5″)
- Trommel screen drum dimensions: 2m X 6.9m (6’ X 22’)
- 180° radial fines conveyor with a variable discharge height of up to 5.9m (16’10”)
- Intelligent load sensing to prevent drum overload
- 1500mm (60”) wide collection conveyor and steep hopper sides eliminates material bridging
- Improved fuel efficiency with eco-power saving functionality
- Low power consumption: 12-15ltr/hr (3-4 US Gallons)
- Innovative design of feeder conveyor allows for ease of drum removal and mesh change
- Adjustable screening angle
