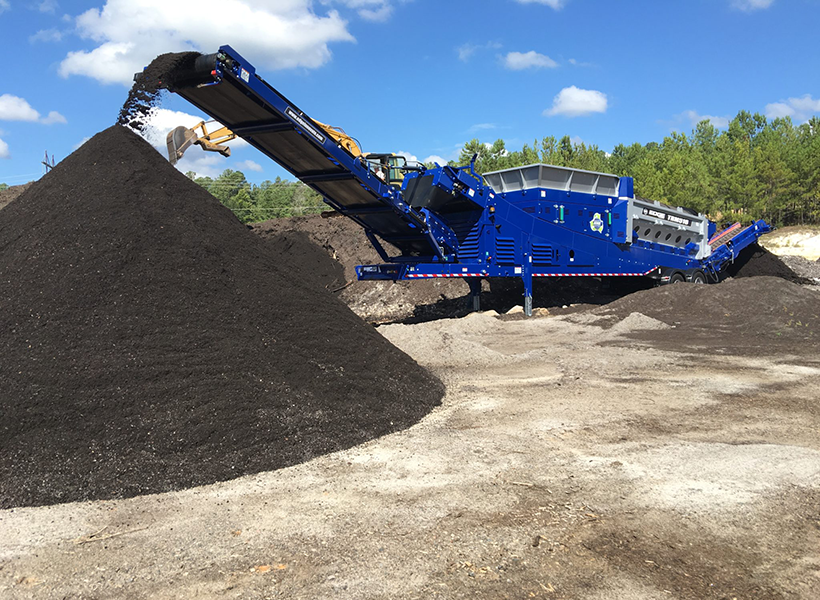

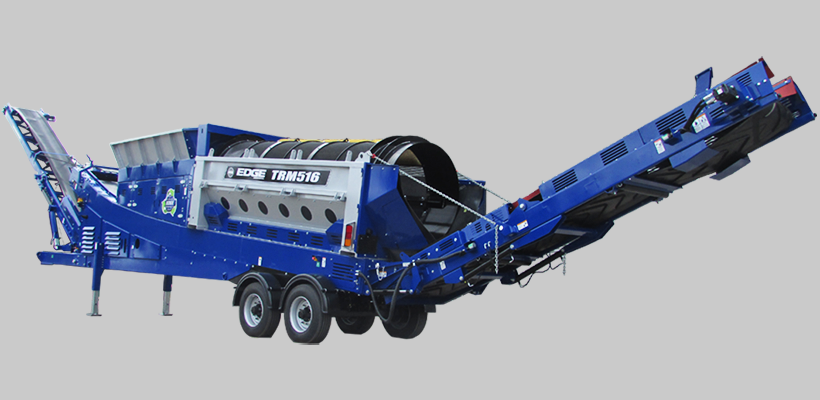

TRM516 MOBILE
The EDGE Innovate TRM516 trommel screen range has been designed for mid to large-scale operations that may be constrained for space. Designed with durability in mind, the robust TRM516 trommel screen has proven capabilities in the recycling, composting and construction & demolition industries. The compact TRM516 mobile trommel maintains all the benefits of a side conveyor product with all the advantages of an end conveyor offering.
TRM516 MOBILE
Check out the TRM516 MOBILE
specifications and features.
Weight: 18.5 tonne (20.3UST)
Transport Width: 2.3M (7’7″)
Transport Length: 15.5M (51″)
Transport Height: 4M (13’1″)
Working Width: 2.3M (7’7″)
Working Length: 23.4M (76’9″)
Working Height: 5.3M (17’6″)
- Trommel screen barrel diameter of 1.54m (5’) X 4.9m (16’) long provides a screening area of 22yds²
- Reduced wear cost and quick barrel exchange facilitated through a 4 wheel drive drum system
- 180° radial fines conveyor with a discharge height of 5.3m (17’6”)
- Intelligent load sensing to prevent barrel overload
- Variable drum and feed conveyor speed with forward/reverse functionality
- Improved fuel efficiency with eco-power saving functionality
- Low power consumption: 12-15ltr/hr (3-4 US Gallons)
- Hydraulic foldable end conveyors for quick transfer from operational to transport mode.
