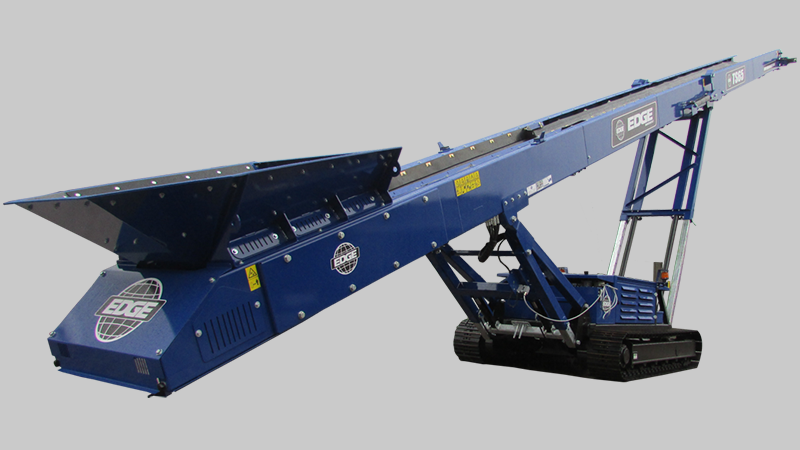

TRACK STACKER SERIES

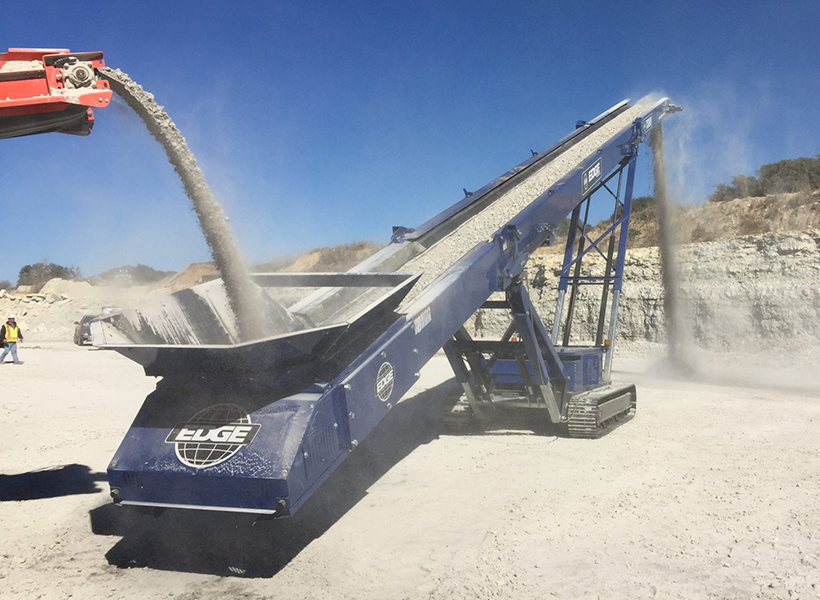

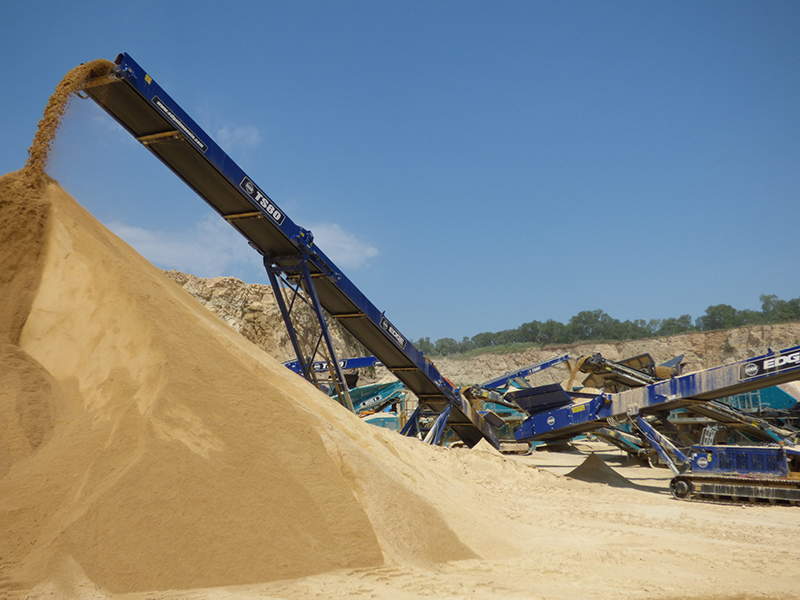

EDGE Innovate has created a track stacker series that offers operators an efficient, reliable and robust material handling solution. Designed to work in the harshest of environments the TS-Series ensures that screeners and crushers operate at maximum capacity by freeing up excavators and wheel loaders to continuously load rather than creating stockpiles.
The EDGE TS-Series is the perfect stockpiling solution for a vast range of applications and material types.
TRACK STACKER SERIES
Check out the TRACK STACKER SERIES
specifications and features.
TS80
- Weight: 13 tonne (14.3 UST)
- Transport Width: 2.3M (7’6″)
- Transport Length: 12.6M (41’4″)
- Transport Height: 2.3M (7’6″)
- Working Width: 2.3M (7’6″)
- Working Length: 24M (80′)
- Working Height: 11M (36’2″)
- Can be continually fed by any Primary / Secondary Crusher, Screener or Grinder
- Can reduce fuel, maintenance and labor costs by up to 80%
- Eliminate double handling of material with wheel loader
- Fully tracked for on-site mobility
- Impressive stockpiling rates from 100 -1000+ Tonnes per Hour
- Discharge heights up to 13.5m (44’3”)
- Fuel consumption from 5 liters per hour (1.3 USG)
- Transports easily via low loader or packed in container for shipping
